Function and Applications
Modern magnetic stirrer with heater and a flat housing sealed all around to protect against chemicals.
Package includes:

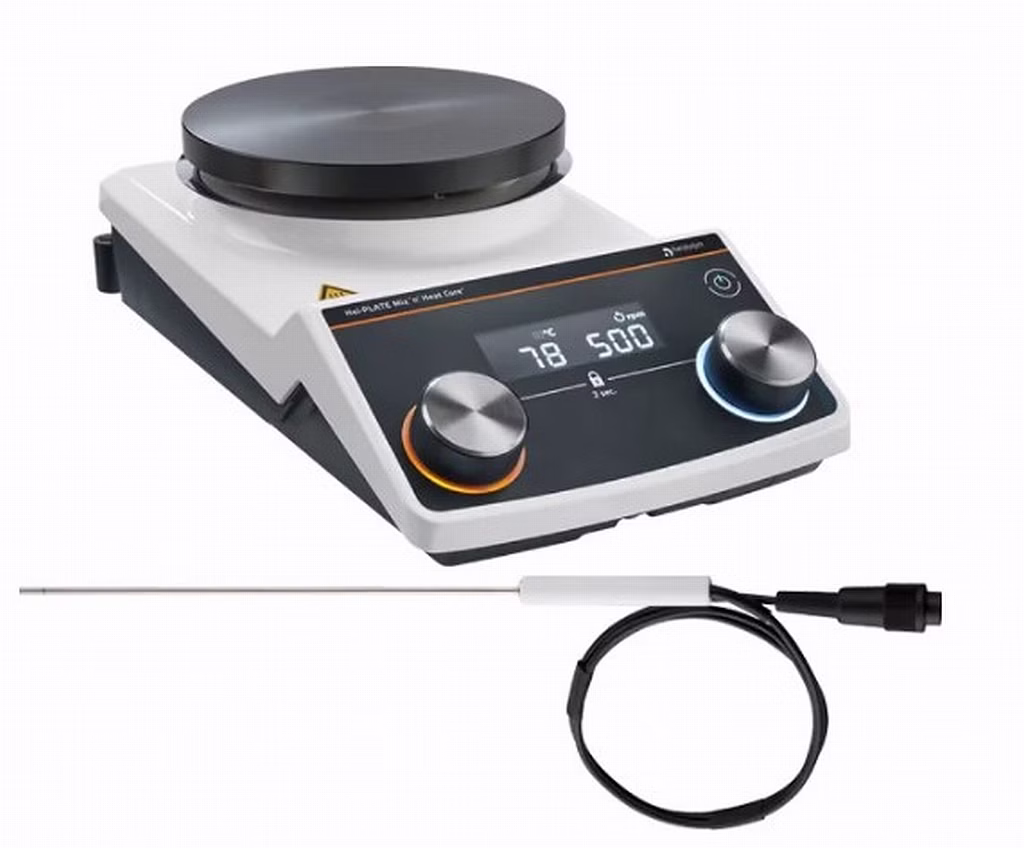

- the magnetic stirrer Hei-PLATE Mix 'n' Heat Core+ (145 mm diameter) - fast and precise heating
- the Pt1000 temperature sensor for precise temperature regulation for sample-friendly work
Benefits
- separate on/off switches with LEDs for heating and stirring
- Heating plate made of silumin (aluminum alloy) with ceramic coating
- fast heat conduction and good heat distribution
- especially scratch-resistant and chemical-resistant
Equipment and Technical Data
- Diameter of the plate: 145 mm
- Heating power: 800 Watt
- Temperature range of the heating plate: 20...300 °C
- Temperature range of the medium to be heated: up to 250°C
- Heating plate is equipped with 2 temperature sensors, one for the safety circuit
- independent safety circuit switches off the heating 25° C above the set heating plate temperature with a separate circuit
- Control accuracy of the heating plate: ±5 K
- Stirring motor with reinforced stirring magnet for reliable entrainment of the magnetic stirring bar
- Speed range: 100 - 1,400 1/min
- Control accuracy of the speed: ±2
- Stirring quantity: max. 20 liters of water
- Motor protection by electronic current limiting
- Supply voltage: 230 V/50-60 Hz
- Weight: 2,6 kg
- Warranty: 3 years
