Function and Applications

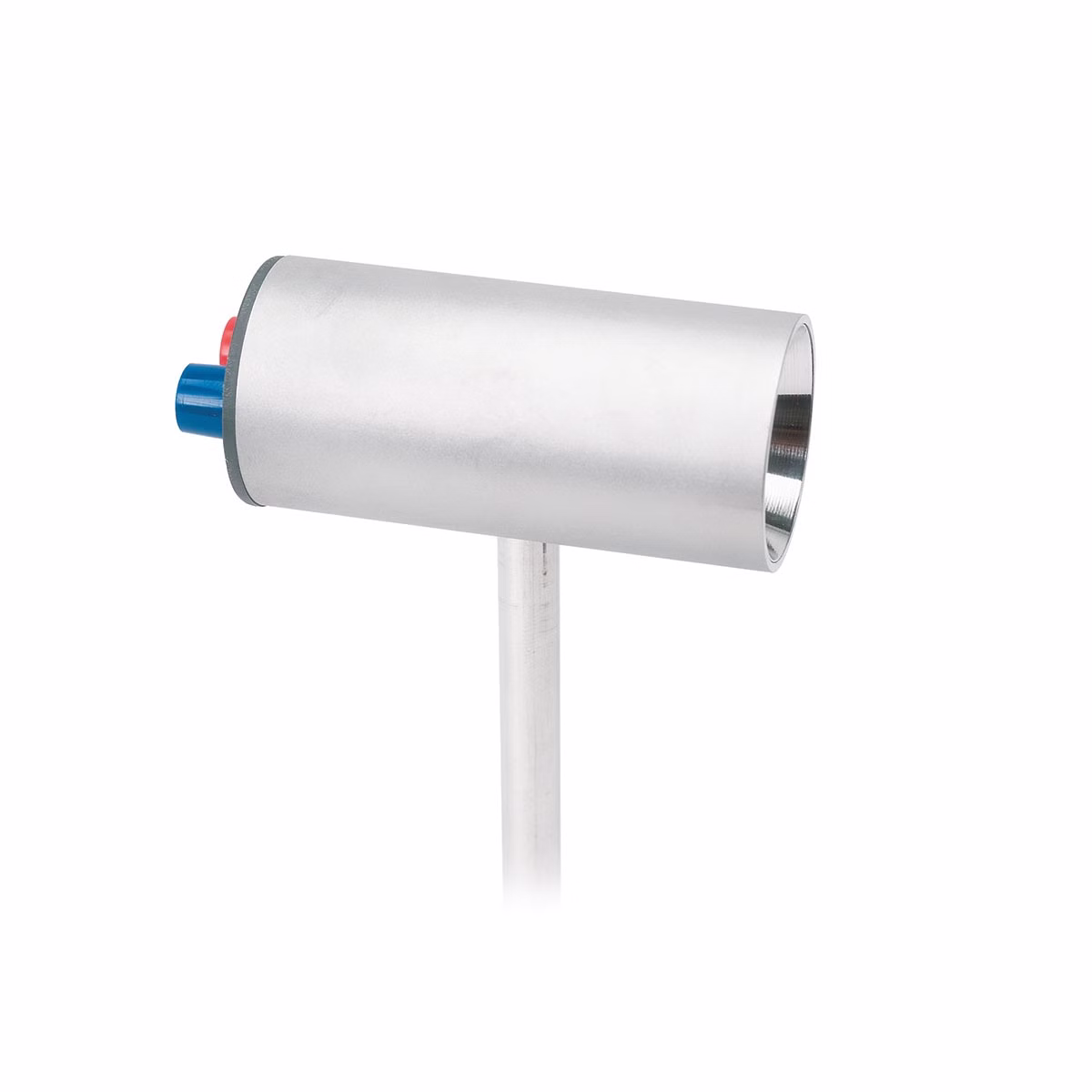

Sensitive probe for measuring thermal radiation from black bodies or a Leslie cube and for detecting visible light and ultraviolet radiation. Metal housing with polished conical reflector and a black surface of 15 mm diameter to which 17 thermocouples are connected. With two 4 mm connection sockets, mounted on stem.
Equipment and Technical Data:
- Response time (95%): approx. 40 s
- Diameter absorber surface: 15 mm
- Sensitivity: approx. 0,14 V/W
- Diameter housing: 40 mm
- Length housing: 94 mm
- Length stem: 156 mm
- Diameter stem: 10 mm
- Mass: 200 g
