Technical data

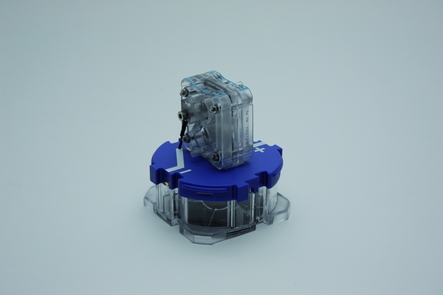

Double PEM electrolyser, DB

Article no: 09488-00

Function and Applications

Demonstration electronic building block with double electrolyser for H2 and O2 production. To perform student experiments in thef ield of hydrogen technology, for example solar-hydrogen and wind-hydrogen technology.

Benefits

  • Easy and comprehensive experimentation due to compatibility to other devices in the field of renewable energy, especially wind generator.
  • 100% reliable contacts due to interlocking building blocks and gold plated contacts even under humid climate conditions.
  • Integrated electrical devices are visible from the rear. Magnetic pads for vertical setups.

Equipment and Technical Data

  • Hydrogen production: 10 cm³/min
  • Oxygen production: 5 cm³/min
  • Power: 2.33 W
  • Dimensions H x W x D (mm): 56 x 42 x 57
  • Imprinted polarity indication
  • gold coated side contacts
  • magnetic pads for vertical setups

Accessories

Gas storage, DB (09489-00), Double PEM fuel cell, DB (09486-00), Quattro PEM fuel cell, DB (09487-00)

Scope of delivery

Double PEM Electrolyzer cell 06718-01 1
