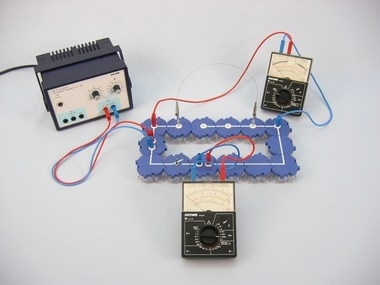

The resistivity of wires Principle From the experimentally determined relationships R ∼ I with ρ and A constant, and R ∼ 1∕A with ρ and l constant as well as R ∼ l∕A the equation R = ρ × l∕A was worked out and resistivity was introduced as a material "constant". The students should use this equation to experimentally determine the quantity ρ for common conductor materials. Benefits - No additional cable connections between the building blocks needed - clear arragned and quick setup
- Contact saftey due to puzzle blocks system
- Corrosion-free gold plated contacts
- Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside
Tasks How high is the resistivity of some metals? Determine the resistivity of copper, iron and constantan. Scope of delivery |
Straight connector module, SB
|
05601-01
|
4
| |
Angled connector module, SB
|
05601-02
|
2
| |
Interrupted connector module with sockets, SB
|
05601-04
|
2
| |
Junction module, SB
|
05601-10
|
2
| |
Straight connector module with socket, SB
|
05601-11
|
2
| |
Angled connector module with socket, SB
|
05601-12
|
2
| |
On-off switch module, SB
|
05602-01
|
1
| |
Alligator clips, bare, 10 pcs
|
07274-03
|
1
| |
Connecting plug, 2 pcs.
|
07278-05
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07360-01
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07360-04
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07361-01
|
2
| |
Connecting cable, 32 A, blue, various lengths
|
07361-04
|
2
| |
Copper wire, d = 0.2 mm, l = 100 m
|
06106-00
|
1
| |
Iron wire, d = 0.2 mm, l = 100 m
|
06104-00
|
1
| |
Constantan wire, 15.6 Ohm/m, d = 0.2 mm, l = 100 m
|
06100-00
|
1
| |
PHYWE Analog multimeter, 600V AC/DC, 10A AC/DC, 2 MΩ, overload protection
|
07021-11
|
2
| |
PHYWE Power supply, 230 V, DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A
|
13506-93
|
1
|
|
