Cobra SMARTlink

Simple. Digital. Experimental.

Perfect for experimentation.

Cobra SMARTlink is a state-of-the-art, high-performance 3-in-1 tablet. It is not only a great measuring and display device for digital science teaching, but also a full featured Android tablet. Due to the brilliant 10.1 inch display paired with the powerful hardware and the 7 internal measuring sensors it is perfectly equipped for the requirements of modern, digital, science education. Especially in student experiments Cobra SMARTlink is very good, easy and reliable to use.

Everything you need, exactly what you want.

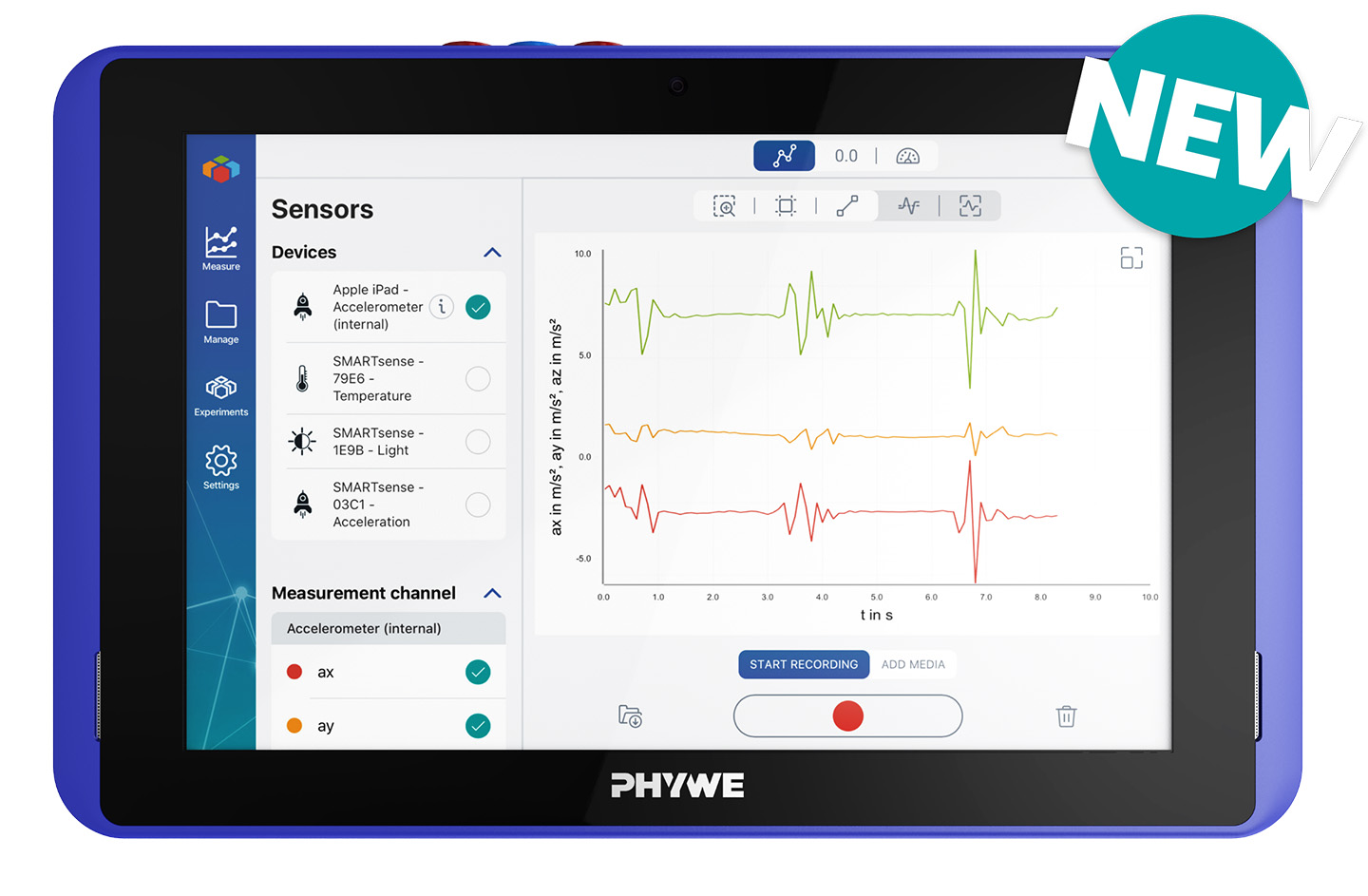

Start measuring directly with seven integrated sensors and the pre-installed measuring software measureAPP.

  • Acceleration
  • Temperature (2x)
  • Current
  • Voltage
  • Light
  • UV
  • Humidity

Enough power for all your applications.

A powerful CPU and sufficient RAM ensure that everything always runs smoothly.

8 CPU cores
2 GHz CPU clocking

4 GB RAM
64 GB internal memory

On the ready, set, go.

Get started right away with more than 100 ready-to-use experiment descriptions for all disciplines (physics, chemistry, biology and natural sciences) in the pre-installed measureAPP.

Everything in perfect view.

A brilliant 10.1" display offers sufficient space for all applications as well as a detailed and pin sharp display.

10.1" (25.65 cm diagonal)
LED backlighting
Multi‑Touch
IPS Technology

1920 x 1200 resolution (WUXGA)
330 Nits brightness

When it needs to be something more.

More than 40 additional Cobra SMARTsense sensors connectable via Bluetooth and USB.

Cobra SMARTsense

Perfect for experimenting, but not only.

The Android operating system and the more than 3 million apps in the Google Play Store support you beyond experimenting.

Battery for the whole day ... and more.

The large battery with 10.000 mAh and quick charge function ensures your use throughout the whole (school) day.

Technical features

Scope of delivery

  • 1x Cobra SMARTlink
  • 1x Charging cable type C with charging adapter
  • 2x Temperature probes type K
  • 2x Banana plugs, stackable, red with 4 mm plug, 50 cm length
  • 1x Banana plug, stackable, blue with 4 mm plug, 50 cm length
  • 1 x Manual (German, English)
  • 1x High quality packing carton incl. storage box

Equipment

  • Octa-Core (8-core) processor 2.0 GHz, 4 GB RAM (DDR3)
  • Internal memory 64 GB, expandable to 128 GB with microSD card
  • 10.1 inch LCD touch screen (16:10), resolution 1,200 x 1,920 (WUXGA)
  • Front camera 2 MP, main camera 5 MP
  • Built-in loudspeaker, 3.5 mm headphone jack
  • Bluetooth 5.0, WiFi standard 802.11 a/b/g/n/ac
  • 1 x USB type C to charge the device and for data communication e.g. via USB stick, PC
  • Battery: 10.000 mAh
  • Weight: 830 g

Internal sensors

Temperature: 2x Thermocouple type K

  • Measuring range: -200 ... 1200 °C
  • Resolution: 0.4 °C
  • Accuracy: +/- 3 %
  • Data rate: 1 kHz

Voltage: 1x voltage connection 4 mm sockets

  • Measuring range: -30V ... +30 V
  • Resolution: 20 mV
  • Accuracy: +/- 1 %
  • Data rate: 1 kHz

Power: 1 x power connection 4 mm sockets

  • Measuring range: -1A ... +1A
  • Resolution: 1 mA
  • Accuracy: +/- 1 %
  • Data rate: 1 kHz

Light (built-in sensor)

  • Measuring range: 1-128 kLx
  • Resolution: 1 Lx
  • Accuracy: +/- 4 %
  • Data rate: 10 Hz

Air humidity (built-in sensor)

  • Measuring range: 0 ... 100 %
  • Resolution: 0.1 %.
  • Accuracy: +/- 4 % (at 0-80 %)
  • Data rate: 10 Hz

UV (built-in sensor)

  • Measuring range: 0 ... 400 W/m²
  • Resolution: 0.1 W/m²
  • Accuracy: +/- 4 %
  • Data rate: 10 Hz

Acceleration (built-in sensor)

4 x USB 2.0 inputs for Cobra SMARTSense sensors, maximum data rate up to 10 kHz

Support

Frequently asked questions

It seems that either Bluetooth or / and location sharing is not enabled. The following video will show you how to choose the necessary settings.

It seems that you have recently connected to the PC and the USB connection is still active. The following video will show you how to choose the necessary settings.

Sharing the location is important to use external Cobra SMARTsense sensors via Bluetooth. Your location data will only be used on your device and will not be stored or used by PHYWE.
The following video will show you how to choose the necessary settings.

Could your questions not be answered so far? Then contact us:


By e-mail:
smartlink@phywe.de

By phone (Mon-Fri 9:00-12:00):
+49 (0) 551 604 - 222
