Technical data

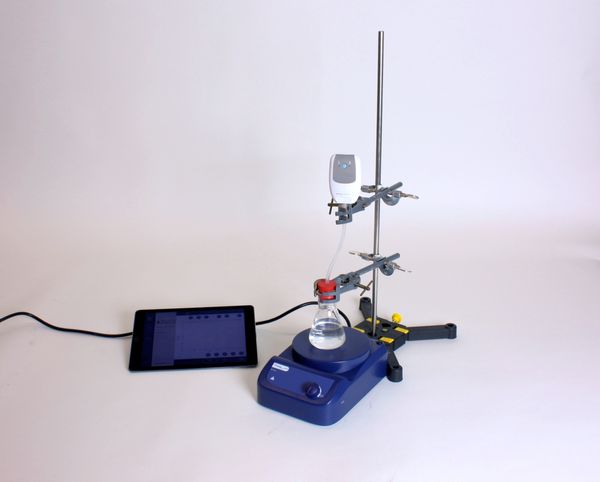

Enzymatic activity of catalase with Cobra SMARTsense

Article no: P4120669

Principle

Enzymatic degradation of the cellular respiratory poison hydrogen peroxide in the liver.

Benefits

  • Especially understandable and didactically prepared description of the experiment (reference to everyday life etc.) including protocol questions.
  • Future-oriented teaching: Integration into digital science lessons with tablets or smartphones.
  • Increased motivation of students by using the intuitive measureAPP.
  • Increased media competence.
  • Compact, easily transportable experimental set-up
  • suitable for demo experiments and practical training
  • Flexible test execution thanks to wireless data transmission

Tasks

  1. investigation of the enzymatic degradation of hydrogen peroxide, a cell respiratory poison, in the liver
  2. examination of the temperature and pH influence on the metabolic activity

Learning Objectives

  • Catalase
  • cell respiratory poison
  • Hydrogen peroxide

Scope of delivery

Cobra SMARTsense Absolute Pressure - Sensor for measuring the absolute pressure 20 ... 400 kPa (Bluetooth + USB) 12905-01 1
Support base, variable 02001-00 1
Support rod, l = 600 mm, d = 10 mm, split in 2 rods with screw threads 02035-00 1
Boss head 02043-00 2
Universal clamp 37715-00 2
Magnetic stirrer with heating, stainless steel, digital, 280 °C, 100-1500 rpm FHO-RSM10HS 1
Magnetic stirring bar, 50 mm, cylindrical 46299-03 1
Erlenmeyer flasks, Boro, narrow neck, various sizes 46142-00 1
Rubber stopper 26/32, 1 hole 7 mm 39258-01 1
Glass tube, straight, l=80 mm, 10/pkg. MAU-16074541 1
PVC tubing, various inner diameters 03985-00 1
Graduated cylinders, Boro, various sizes 36629-00 2
Mortar w. pestle, 70ml, porcelain 32603-00 1
Sieve, fine mesh, d=60 mm 40968-00 1
Graduated pipettes, various sizes 36595-00 1
Graduated pipettes, various sizes 36600-00 2
Beakers, Boro, high form, various sizes 46027-00 2
Test tubes,160x16mm, 10pcs 36301-03 1
Glycerol 99% 100 ml 30084-10 1
Wash bottle, plastic, 500 ml 33931-00 1
Hydrogen peroxide, 30%, 250 ml 31710-25 1
Hydrochloric acid, 1.0 mol/l, 1000 ml 48454-70 1
Caustic soda solution, 1.0 m, 1000 ml 48329-70 1
measureAPP - the free measurement software for all devices and operating systems 14581-61 1
