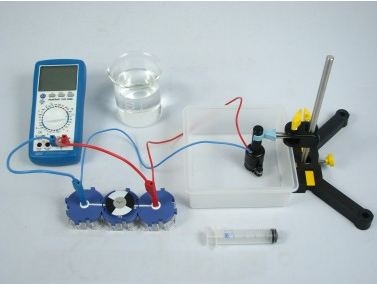

Principle The process of pumping water by electric energy is reversed in
this experiment, i.e. running water is used to generate a
voltage. Benefits - Experiment is part of a complete solution set with a total of 26 experiments for Renewable Energy solar cells, wind power, water power
- The generator can also be used as a water pump
- Doubled learning success: Electric circuit diagram on top, real components can be seen at the bottom
Tasks Can water drive a motor? Scope of delivery |
Motor with indicating disc, SB
|
05660-00
|
1
| |
Junction module, SB
|
05601-10
|
2
| |
Beakers, Boro, low form, various sizes
|
46055-00
|
1
| |
Support base, separable for 2 rods
|
02001-00
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07360-01
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07360-04
|
1
| |
Dish, plastic, 150x150x65 mm
|
33928-00
|
1
| |
Water pump/ water turbine/ generator
|
05753-00
|
1
| |
clamp, d = 16 mm, with mounting rod
|
05764-00
|
1
| |
Syringe 20ml, Luer, 100 pcs
|
02591-10
|
1
| |
Stand rods, stainless steel, various sizes
|
02031-00
|
1
| |
Boss head
|
02043-00
|
1
| |
PHYWE Digital multimeter, 600V AC/DC, 10A AC/DC, 20 MΩ, 200 µF, 20 kHz, −20°C…760°C
|
07122-00
|
1
|
|
