Technical data

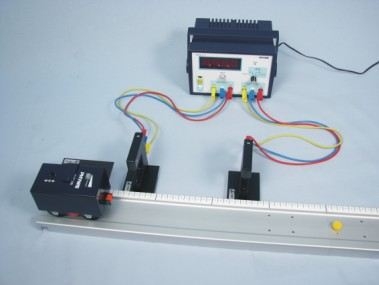

Laws of uniform linear motion with the 2-1 timer

Article no: P1003805

Principle

In this experiment, pupils should determine the laws of motion associated with uniform straight motion. Particularly, the presentation of the course of motion should be prepared in a distance-time graph and a speed-time graph.

Benefits

Especially accurate and reproducible results due to the use of light barriers and the Timer 2-1
Timer 2-1 can be used for versatile applications, for example for teacher experiments due to ist great display
Very modern student experiments which fully cover the curriculum subject "Motion"

Note: Without the optional accessory 13453-88, this experiment cannot be carried out with the TESS Linear Motion Set 15283-88.

Scope of delivery

Cart, motor driven	11061-00	1
Shutter plate for car, motor driven	11061-03	1
PHYWE Timer 2-1	13607-99	1
Compact - Light barrier	11207-20	2
Adapter plate for Light barrier compact	11207-22	2
Connecting cable, 32 A, red, various lengths	07363-01	2
Connecting cable, 32 A, yellow, various lengths	07363-02	2
Connecting cable, 32 A, blue, various lengths	07363-04	2
Track, l 900 mm	11606-00	1
