Technical data

Coil, 1200 turns

Article no: 06515-01
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

Function and Applications

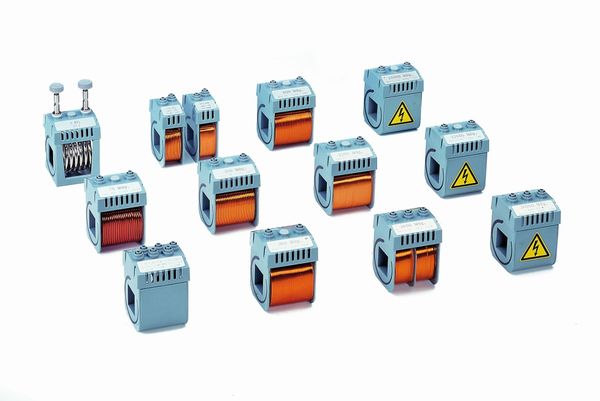

Coil for experiments with electromagnetism.

Equipment and technical data

  • Shock-resistant plastic coil former.
  • With 4 mm safety plugs.
  • Max. permanent current: 1 A.
  • Ohmic resistance: 12 Ohm.
  • Inductance: 35 mH.
  • Square hole (mm): 31 x 31.
  • Length: 66 mm.
