Technical data

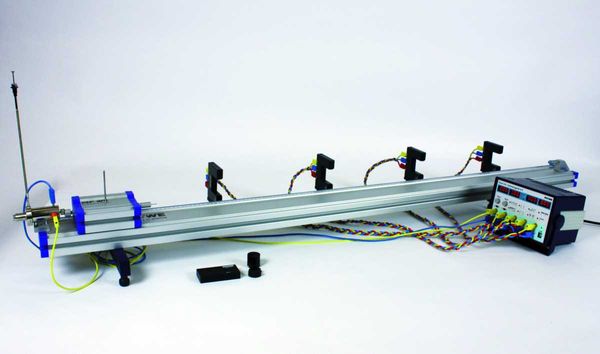

Linear uniform motion with the demonstration track and the timer 4-4

Article no: P1198505

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

Principle

A cart is repeatedly accelerated to a constant velocity by way of a mechanical starter system. The runtime of the cart is determined at various intervals. These values are then used to determine the average velocity.

Benefits

Accurate results due to measurements with low friciton: cart with sapphire bearings
Over the entire track length adjustable feet for a very simple alignment of the track even on small tables
Extrem robust accessories, for example no overloading of cars due to elastic bearing of base plate, prevent unnecessary breakdowns
Timer 4-4 can be used for almost every experimental requirement : distance-time law for four tracks, measurement of speed at four positions, principles of collisions, measurement of the orbiting time of a rotary movement, the direct measurement of the duration of a complete swing of a mechanical pendulum and for short or long-term measurements with two 8-digit displays by connecting each of 2 timers

Scope of delivery

Demonstration track, aluminium, 1.5 m	11305-00	1
Cart, low friction sapphire-bearing	11306-00	1
Shutter plate for low friction cart, width: 100 mm	11308-00	1
Needle with plug	11202-06	1
Plasticine, 10 sticks	03935-03	1
Magnet w.plug f.starter system	11202-14	1
Tube with plug	11202-05	1
Compact - Light barrier	11207-20	4
Holder for light barrier	11307-00	4
PHYWE Timer 4-4	13604-99	1
Connecting cable, 32 A, yellow, various lengths	07363-02	5
Connecting cable, 32 A, red, various lengths	07363-01	4
Connecting cable, 32 A, blue, various lengths	07363-04	5
Starter system for demonstration track	11309-00	1
End holder for demonstration track	11305-12	1
