Technical data


Fundamental law of dynamics (Newton's second law) with the demonstration track and the timer 4-4

Article no: P1199205

Principle

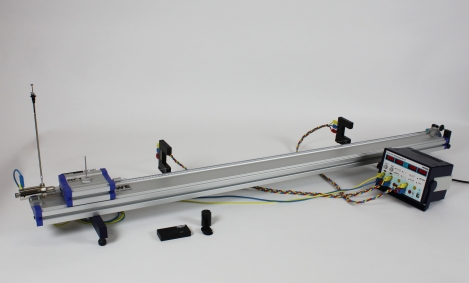

If an object is subject to constant force, it undergoes constant acceleration. Its change in motion is proportional to the accelerating force. The aim of this experiment is to describe the relationships between the acceleration of a cart and its mass or the accelerating force with the aid of the demonstration track.

Benefits

  • Accurate results due to measurements with low friciton: cart with sapphire bearings
  • Over the entire track length adjustable feet for a very simple alignment of the track even on small tables
  • Extrem robust accessories, for example no overloading of cars due to elastic bearing of base plate, prevent unnecessary breakdowns
  • Timer 4-4 can be used for almost every experimental requirement : distance-time law for four tracks, measurement of speed at four positions, principles of collisions, measurement of the orbiting time of a rotary movement, the direct measurement of the duration of a complete swing of a mechanical pendulum and for short or long-term measurements with two 8-digit displays by connecting each of 2 timers

Scope of delivery

Demonstration track, aluminium, 1.5 m 11305-00 1
Cart, low friction sapphire bearings 11306-00 1
Shutter plate for low friction cart, width: 100 mm 11308-00 1
Starter system for demonstration track 11309-00 1
Magnet w.plug f.starter system 11202-14 1
Needle with plug 11202-06 1
Tube with plug 11202-05 1
End holder for demonstration track 11305-12 1
Plasticine, 10 sticks 03935-03 1
Pulley for demonstration track 11305-10 1
Holder for pulley 11305-11 1
Silk thread, l = 200 m 02412-00 1
Slotted weight, silver bronze, 10 g 02205-03 8
Slotted weight, silver bronze, 50 g 02206-03 4
Weight for low friction cart, 400 g 11306-10 1
Slotted weight, blank, 1 g 03916-00 20
Weight holder, silver bronze, 1 g 02407-00 1
Light barrier, compact 11207-20 2
Holder for light barrier 11307-00 2
PHYWE Timer 4-4 13604-99 1
Connecting cable, 32 A, red, various lengths 07363-01 4
Connecting cable, 32 A, yellow, various lengths 07363-02 5
Connecting cable, 32 A, blue, various lengths 07363-04 5
Portable Balance, OHAUS CR2200 48914-00 1
