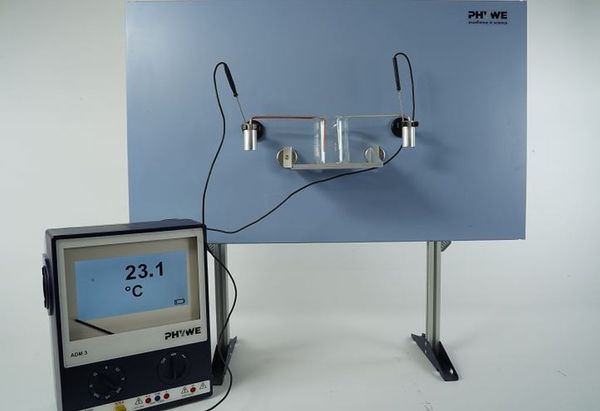

Principle The thermal conductivity of various materials is analysed by
comparing copper, aluminium, brass and glass with each other. In
each case, one side of a rod bent into a U-shape is immersed in hot
water. Heat is transfered via the rods which is demonstrated with
heat sensitive paper. In the second part of the experiment, the
warming up of a vessel on the other side of the rod shows that heat
is transferred through the rod. Benefits - Optimised for demonstration experiments: Transformation from horizontal into vertical direction
- Demonstrative measurement value indication using Cobra4 MobileLink2 with large-scale display
- Secure fastening of burners and hot vessels
- Glass equipment, liquid levels and flowing liquids can be observed easily on the plain background
Scope of delivery |
Magnetic board with stand
|
02150-00
|
1
| |
Rod on fixing magnet
|
02151-02
|
1
| |
Clamp.holder d=28-36mm fix.magn.
|
02151-06
|
2
| |
Clamping holder, 0-13 mm, fixing magnet
|
02151-07
|
2
| |
Wire gauze holder on fix. magnet
|
02163-00
|
1
| |
Wire gauze with ceramic, 160 x 160 mm
|
33287-01
|
1
| |
Beaker, aluminum, polished
|
05903-01
|
2
| |
Aluminium rod,U-shaped
|
05910-00
|
1
| |
Copper rod, U-shaped
|
05910-01
|
1
| |
Brass rod, U-shaped
|
05910-02
|
1
| |
Glass rod,U-shaped
|
05911-00
|
1
| |
Erlenmeyer flask, stopper bed, 100 mlSB 29
|
MAU-EK17082301
|
2
| |
Silicone tubing, various diameters
|
47530-00
|
1
| |
Funnel, diameter = 50 mm, plastic (PP)
|
36890-00
|
1
| |
Heat sensitive paper
|
04260-00
|
2
| |
Immersion probe NiCr-Ni, steel, -50...400 °C
|
13615-03
|
2
| |
Immers.heater,300W,220-250VDC/AC
|
05947-93
|
1
| |
Beakers, Boro, low form, various sizes
|
46056-00
|
1
| |
G-clamp
|
02014-01
|
2
| |
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature
|
13840-00
|
2
|
|
