Technical data


Galvanisation

Article no: P1397200

Principle

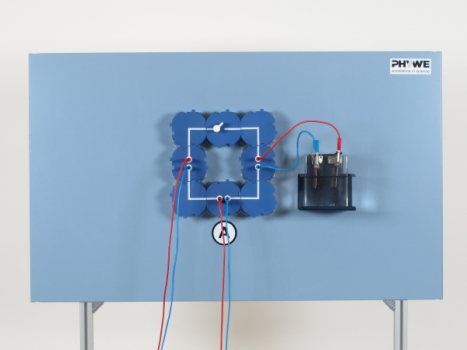

An experimental model is to be used to demonstrate how surfaces of non noble metal objects can be coated with noble metals by galvanization.

Benefits

  • No additional cable connections between the building blocks needed - clear arragned and quick setup
  • Contact saftey due to puzzle blocks system
  • Corrosion-free gold plated contacts
  • Doubled earning sucess: Electric circuit diagram on top, real components can be seen unterside

Scope of delivery

PHYWE Demo Physics board with stand 02150-00 1
Connector, angled, module DB 09401-02 4
Connector interrupted, module DB 09401-04 3
Switch on/off, module DB 09402-01 1
Support plate w. holder,module DB 09471-00 1
Glass tank, 100x50x120 mm 06620-10 1
Plate electrode holder 06618-00 2
Metal electrodes, 76 x 40 mm, various metals 45212-00 1
Metal electrodes, 76 x 40 mm, various metals 45216-00 1
Connecting cable, 32 A, red, various lengths 07360-01 1
Connecting cable, 32 A, blue, various lengths 07360-04 1
Connecting cable, 32 A, red, various lengths 07363-01 2
Connecting cable, 32 A, blue, various lengths 07363-04 2
PHYWE Power supply, universal, analog display DC: 18 V, 5 A / AC: 15 V, 5 A 13503-93 1
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature 13840-00 1
Electr.symbols f.demo-board,12pcs 02154-03 1
Copper-II sulphate,cryst. 250 g 30126-25 1
Sulphuric acid, 10%, tech.gr., 1000 ml 31828-70 1
Denaturated alcohol (spirit for burning), 1000 ml 31150-70 1
Spoon, with spatula end, 180 mm, plastic 38833-00 1
Emery paper, medium 01605-00 1
