Technical data

Electrical conductivity of metals

Article no: P2350205
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

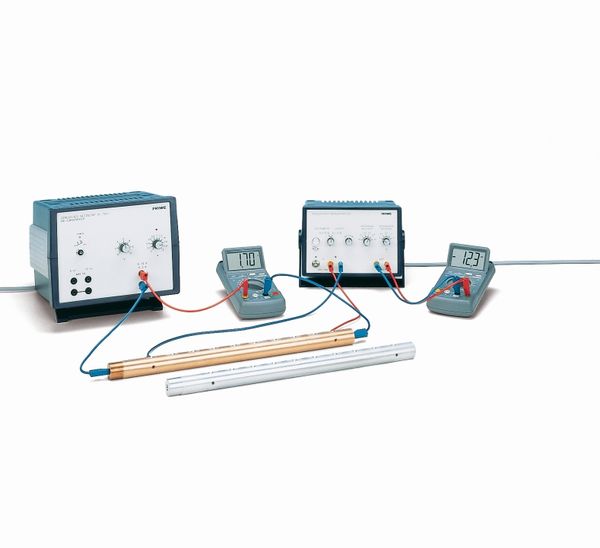

Principle

The electrical conductivity of copper and aluminium is determined and the Wiedmann-Franz law is tested.

Benefits

  • Easy and precise measurement of the electrical conductivity
  • Compact, easily transportable setup

Tasks

  1. Determine the electrical conductivity of copper and aluminium by recording a current-voltage characteristic line.
  2. Test of the Wiedmann-Franz law.

Learning objectives

  • Electrical conductivity
  • Resistivity
  • Wiedmann-Franz law
  • Lorenz number
  • Four-point measurement

Scope of delivery

Heat conductivity rod, Cu 04518-11 1
Heat conductivity rod, Al 04518-12 1
Rheostat 10 Ohm, 160 W 06110-03 1
PHYWE Multitap transformer DC: 2/4/6/8/10/12 V, 5 A / AC: 2/4/6/8/10/12/14 V, 5 A 13533-93 1
PHYWE Digital multimeter, 600V AC/DC, 10A AC/DC, 20 MΩ, 200 µF, 20 kHz, −20°C…760°C 07122-00 2
PHYWE Universal measuring amplifier 13626-93 1
Connecting cable, 32 A, red, various lengths 07361-01 3
Connecting cable, 32 A, blue, various lengths 07361-04 4
Connecting cable, 32 A, red, various lengths 07363-01 1
