Conversion of electrical energy into mechanical energy

Article no: P1353700

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

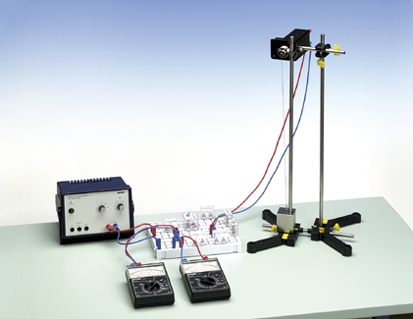

Principle

A motor that raises a load, i.e. converts electrical energy into mechanical energy, is a familiar everyday sight. The special feature of this set-up is that it can be used to generate electrical energy again directly from the descending weight. That electrical energy illuminates a small lamp.

Scope of delivery

Plug-in board, for 4 mm plugs	06033-00	1
Wire building block, housing G1	39120-00	5
Change over switch, G3	39169-00	1
Lampholder E10, case G1	17049-00	1
Connecting cord, 19A ,50 cm, red	07314-01	2
Connecting cord,19A,50cm, blue	07314-04	2
Connecting cord,19 A,25cm, red	07313-01	2
Connecting cord,19 A,25cm, blue	07313-04	2
Filament lamp 6 V/3 W, E10, 10 pcs.	35673-03	1
PHYWE Analog multimeter, 600V AC/DC, 10A AC/DC, 2 MΩ, overload protection	07021-11	2
PHYWE Power supply, 230 V,DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A	13506-93	1
Weight with hole	02245-00	1
Motor, with gearing, 12 VDC	11610-11	1
Support base, separable for 2 rods	02001-00	1
Stand rods, stainless steel, various sizes	02031-00	1
Stand rods, stainless steel, various sizes	02037-00	2
Boss head	02043-00	1
Fishing line, l. 5m	02089-01	1
