Technical data

The alternating current generator (DEMO)

Article no: P1433705

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Principle

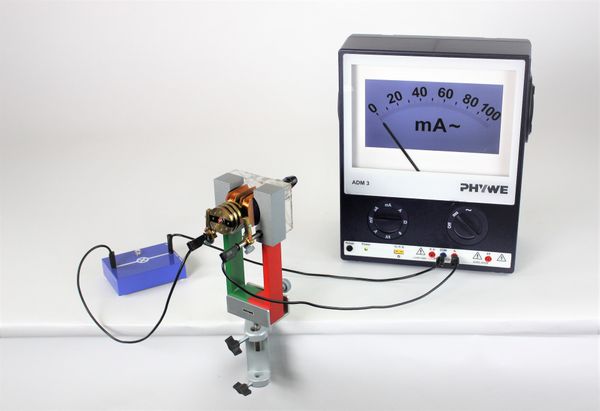

Turning a coil in the magnetic field generates voltage on its ends (induced voltage). After each half rotation of the coil the voltage and electric current change their signs. A light bulb can be operated with the electrical energy generated.

Benefits

Demonstrative experiment due to large instruments
Easy and sturdy setup

Scope of delivery

Bench clamp	02012-00	1
Plate holder, opening width 2 - 35 mm	06509-00	1
U-magnet, U-shaped, limb length 130 mm, colored poles	06320-00	1
Motor set	06550-00	1
Rotor coil, Double-T armature	06554-00	1
Cord pulley	06558-01	1
Crank handle	06559-01	1
Lamp holder E10 on base plate	06002-00	1
Filament lamps 4V/0.08A, E10, 10	06154-03	1
Filament lamps 3.5V/0.2A,E10, 10	06152-03	1
Connecting cable, 32 A, black, various lengths	07362-05	3
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature	13840-00	1
