Generation of induced voltage with a permanent magnet (DEMO)

Article no: P1433605

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Principle

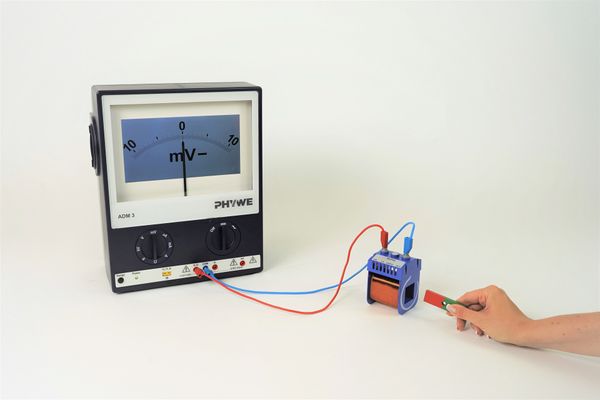

The generation of induction voltages by a permanent magnet is to be demonstrated, and the conditions which govern the size of them are to be investigated.

Benefits

Demonstrative experiment due to large instruments
Easy and sturdy setup

Scope of delivery

Coil, 300 turns	06513-01	1
Coil, 1200 turns	06515-01	1
Magnet, l = 72 mm, rod-shaped	07823-00	1
Connecting cable, 32 A, red, various lengths	07362-01	1
Connecting cable, 32 A, blue, various lengths	07362-04	1
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature	13840-00	1
