Technical data

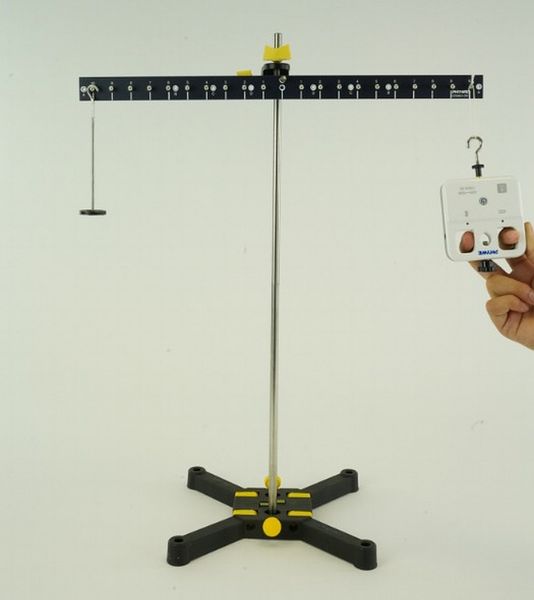

Force reduction with a two-sided lever with Cobra SMARTsense

Article no: P6104169

Principle

The students will observe the relationship between weight and the length of the lever arm of a two-sided lever. They will notice that the point of application of different masses affects the effort which is necessary in order to keep the lever in balance. In addition, they will see how the force, which needs to be applied, changes depending on the point of application of the spring balance or force sensor. They will conclude that force (or effort) can be reduced with the aid of a two-sided lever if the mass and spring balance or force sensor are positioned in a suitable manner.

Benefits

  • Experiment guides are very easy to understand, especially for younger students
  • Associated competences are directly linked to the experiments
  • Curriculum compatible
  • Fit for the future: implementation of tablets possible

Scope of delivery

Cobra SMARTsense Force & Acceleration - Sensor for measuring force and acceleration ±50 N / ±16 g (Bluetooth + USB) 12943-00 1
Weight holder, 10 g 02204-01 1
Slotted weight, silver bronze, 10 g 02205-03 9
Support base, variable 02001-00 1
Support rod, l = 600 mm, d = 10 mm, split in 2 rods with screw threads 02035-00 1
Boss head 02043-00 1
Lever 03960-00 1
Holding pin 03949-00 1
Fishing line, l. 5m 02089-01 1
