The permanent magnet motor (DEMO)

Article no: P1433305

Principle

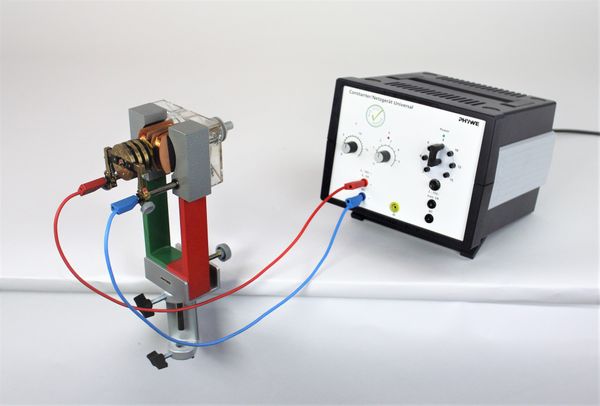

A stable motor set with armature coils, collector and contact brushes is placed on a large U-magnet. This creates a model of an electric motor with a permanent magnet whose properties can be studied.

Benefits

  • Demonstrative experiment due to large instruments
  • Easy and sturdy setup

Scope of delivery

Bench clamp 02012-00 1
Plate holder, opening width 2 - 35 mm 06509-00 1
U-magnet, large, U-shaped, limb length 130 mm, colored poles 06320-00 1
Motor set 06550-00 1
Rotor coil, Double-T armature 06554-00 1
Cord pulley 06558-01 1
Connecting cable, 32 A, red, various lengths 07362-01 1
Connecting cable, 32 A, blue, various lengths 07362-04 1
PHYWE Power supply, universal, analog display DC: 18 V, 5 A / AC: 15 V, 5 A 13503-93 1
