Technical data

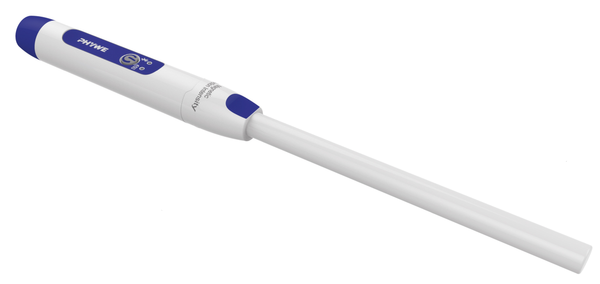

Cobra SMARTsense 3-Axis Magnetic field - Sensor for measuring the magnetic field in 3 axes ±130mT / ±5 mT (Bluetooth + USB)

Article no: 12947-00

Simple. Intuitive. Measurement.

Perfect for student experiments.



Function and Applications
Cobra SMARTsense is the ideal solution for inexpensive digitalization of science teaching. The sensors connect wirelessly (Bluetooth) or wired (USB) directly to the student's digital end device (smartphone, tablet or desktop PC). Using the free and award-winning measureAPP measurement software for iOS, Android and Windows, measured values can be easily recorded and graphically displayed. If more evaluations are needed, the measureLAB measurement software for Windows and macOS can be used.



Measure the magnetic field of permanent magnets, coils or simply the earth's magnetic field. Thanks to the 3 measuring axes, the magnitude and direction of the magnetic field can be determined at any point in space.


Benefits

  • Simplicity - Get started right away with the Bluetooth-enabled end device and the free measureAPP
  • Completeness - Over 40 sensors with more than 70 measured quantities for all subjects
  • Endurance - Intelligent and efficient power management for up to 50 hours on one battery charge
  • Variety - The free measureAPP provides perfect support and runs on all mobile platforms and end devices. For professionals, measureLAB is available.
  • Performance - Up to 32,000 measured values per second guarantee precision and recordings with up to 17 measuring channels simulaneously are possible.
  • Connectivity - Fast connection of sensors and data exchange via Bluetooth - for many sensors additionally possible via USB.



Equipment and Technical Data

  • Range: ±130 mT; ±5 mT
  • Resolution: 0.1 mT; 0.001 mT
  • Samplerate: 500 Hz



The sensor contains a USB-C rechargeable lithium polymer battery.

Necessary accessories

measureAPP - the free measurement software for all devices and operating systems 14581-61

Recommended accessories

USB quick charger with 8 USB ports 07934-99
Cobra SMARTlink 12999-99
USB-Bluetooth Connector for Cobra SMARTsense 07936-00
