Technical data

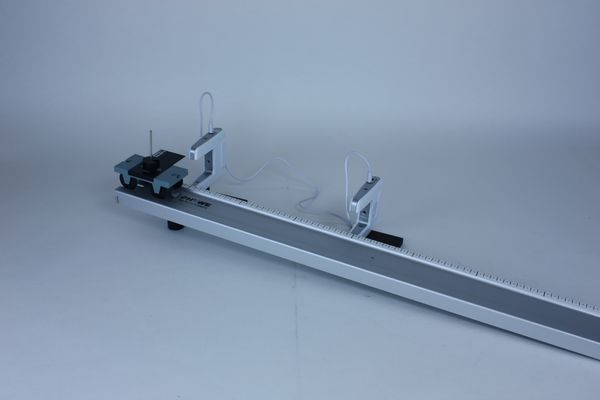

Instantaneous and average speed with Cobra SMARTsense

Article no: P1003769

Principle
A body experiences a constant acceleration parallel to the path of an inclined path due to the component of gravity acting on it. Therefore the laws of motion apply to a uniformly accelerated motion.
Benefits

  • Especially understandable and didactically prepared description of the experiment (relevance to everyday life, etc.) including protocol questions.
  • Future-oriented teaching: Integration into digital science lessons with tablets or smartphones.
  • Increased motivation of students by using the intuitive measureAPP.
  • Increased media competence.

Tasks

  • measuring the time and thus the average speed required by the test trolley for a certain distance with the aid of two light barriers at the beginning and end of the respective distance.
  • measuring the time and thus the instantaneous speed which the aperture on the trolley needs to pass the light barrier after such a distance.
  • comparing the instantaneous and average speed.

Learning objectives
The students should qualitatively examine the differences between uniform and non-uniform movements and at the same time get to know the concept of instantaneous velocity more precisely.

Scope of delivery

Cart for measurements and experiments 11060-00 1
Cobra SMARTsense Photogate - Fork light barrier 0 ... ∞ s, two pieces (Bluetooth) 12909-00 1
Shutter plate for cart 11060-10 1
Slotted weight, silver bronze, 50 g 02206-03 3
Holding pin 03949-00 1
Track, l 900 mm 11606-00 1
Meter scale, demo. l=500mm, self adhesive 03005-00 2
Adapter plate for Light barrier compact 11207-22 2
measureAPP - the free measurement software for all devices and operating systems 14581-61 1
