Technical data


Student set Mechanics 1, TESS advanced Physics

Article no: 25271-88

Function and Applications
Explore the fundamentals of mechanics through a series of experiments ranging from Hooke’s Law to coupled pendulums.
The basic equipment set enables the performance of 32 experiments covering the topics:

  • Physical quantities and characteristics
  • Forces
  • Elementary machines
  • Liquids and gases
  • Oscillations

Benefits

  • Complete equipment set: Minimal preparation time and easy execution of experiments thanks to the digital experiment descriptions provided via QR code.
  • Aligned with educational curricula: All subject areas covered.
  • Modular stand material: Flexible, durable, and stable in use.
  • Color-coded movable parts: Facilitate understanding of mechanical processes during experiments.

Equipment and Technical Data

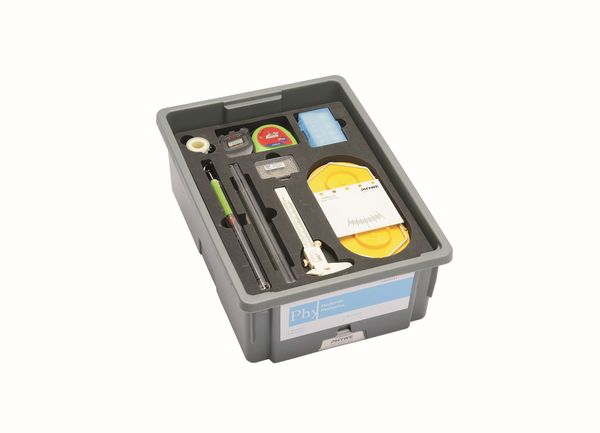

The equipment set consists of a storage box containing all essential components required for conducting the experiments. The sturdy, stackable box features a precisely fitting foam insert that protects the components and allows quick checking for completeness.

Scope of delivery

Support base, separable for 2 rods 02001-00 1
Stand rods, stainless steel, various sizes 02031-00 1
Support rod with hole, stainless steel, 10 cm 02036-01 2
Boss head 02043-00 2
Fishing line, l. 5m 02089-01 1
Weight holder, 10 g 02204-01 2
Slotted weight, silver bronze, 10 g 02205-03 4
Slotted weight, silver bronze, 50 g 02206-03 3
Helical spring, 3,9 N/m 02220-10 1
Helical spring, 20 N/m 02222-00 1
Pulley,movable,dia.65mm,w.hook 02262-00 1
Rod for pulley 02263-00 1
Spring balance,transparent, 1 N 03065-02 1
Spring balance,transparent, 2 N 03065-03 1
Spring balance holder 03065-20 2
Aluminium column 03903-00 1
Steel Column nickel-plated 03913-00 1
Holding pin 03949-00 1
Balance pan, plastic 03951-00 2
Lever 03960-00 1
Pointer for lever 03961-00 1
Plate with scale 03962-00 1
Pulley,movable,dia.40mm,w.hook 03970-00 1
Steel pellets, d = 2 mm, 120 g 03990-00 1
Wood column 05938-00 1
Glass tube holder with tape measure clamp 05961-00 1
Measuring tape, l = 2 m 09936-00 1
Pulleys, double in line 02266-00 2
Beaker, 100 ml, plastic (PP) 36011-01 1
Beaker, 250 ml, plastic (PP) 36013-01 1
Graduated cylinder, 50 ml, plastic 36628-01 1
Set of precision weights,1g-50g 44017-01 1
Pipettes with rubber cap, various sizes 64701-00 1
Vernier calliper, plastic 03011-00 1
Digital stopwatch, 24 h, 1/100 s and 1 s 24025-00 1
Support rod 300 mm with thread M6 331590 3

Necessary accessories

TESS advanced Mechanics 1 consumables for 10 groups 13450-88
Foam insert OE2 13332-25

Recommended accessories

Carrying system for student experiment boxes 25200-00
Handbuch Schülerversuche Mechanik 1-5, TESS advanced Physik, (in german) 01158-01
