Technical data


Newton's law: acceleration as a function of force with Cobra SMARTsense

Article no: P1004269

Principle

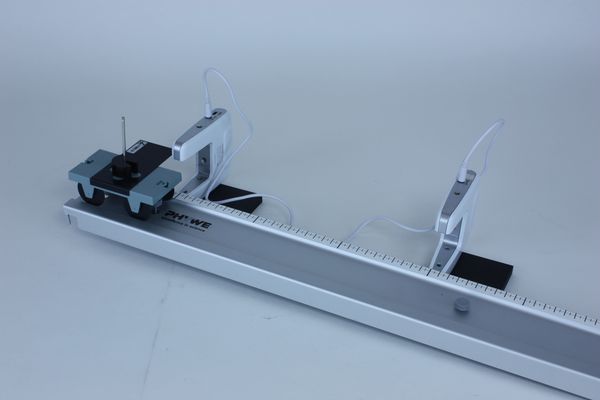

The measuring carriage on the roadway is uniformly accelerated by a mass which is connected to the carriage via a deflection roller with a thread and generates a force in the earth's gravitational field. The concrete value of the acceleration is calculated from the tensile force and the accelerated carriage mass from the 2nd Newtonian Axiom.
Benefits

  • Especially understandable and didactically prepared description of the experiment (relevance to everyday life, etc.) including protocol questions.
  • Future-oriented teaching: Integration into digital science lessons with tablets or smartphones.
  • Increased motivation of students by using the intuitive measureAPP.
  • Increased media competence.

Tasks

  • Pupils use a weight to accelerate a car of known mass on a roadway and measure the time it takes the car to travel a distance of 50 cm. They increase the weight of the train gradually from 1 g to 5 g.
  • The students evaluate the measured data and obtain a linear relationship between force and acceleration from which they determine the gradient.

Learning objectives
In this experiment, the students are to be led experimentally towards the simplified formulation of the 2nd Newtonian axiom.

Scope of delivery

Track, l 900 mm 11606-00 1
Meter scale, demo. l=500mm, self adhesive 03005-00 2
Cart for measurements and experiments 11060-00 1
Shutter plate for cart 11060-10 1
Holding pin 03949-00 1
Cobra SMARTsense Photogate - Fork light barrier 0 ... ∞ s, two pieces (Bluetooth) 12909-00 1
Adapter plate for Light barrier compact 11207-22 2
Silk thread, l = 200 m 02412-00 1
Weight holder, silver bronze, 1 g 02407-00 1
Slotted weight, silver bronze, 50 g 02206-03 3
Slotted weight, blank, 1 g 03916-00 4
Pulley,movable,dia.40mm,w.hook 03970-00 1
Rod for pulley 02263-00 1
measureAPP - the free measurement software for all devices and operating systems 14581-61 1
