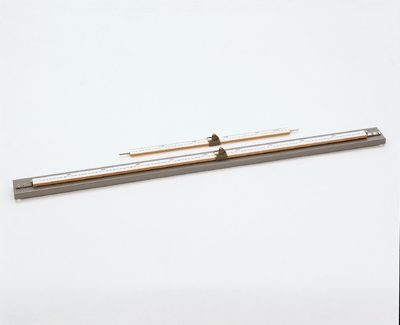

Slide wire measurement bridge

Function and Applications

To build a Wheatstone bridge.

Equipment and Technical Data

• Slide wire measuring bridge.
• On board with scale division in mm, cm, dm.
• Slider and board with 4 mm sockets.
• Scale length: 100 mm
• Constantan wire: d = 0.2 mm, 15.6 Ohm/m
