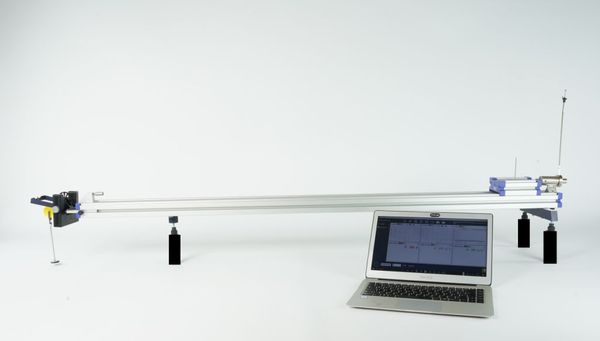

Newton's 2nd law/ demonstration track with Cobra SMARTsense
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
Principle According to Newton's 2nd law of motion for a mass point, the
relationship between mass, acceleration and force are
investigated. Tasks - The distance-time law, the velocity time law and the
relationship between mass, acceleration and force are
determined.
- The conservation of energy can be investigated.
Benefits - Accurate results due to measurements with low friction: cart
with sapphire bearings
- Over the entire track length adjustable feet for a very simple
alignment of the track even on small tables
- Extremely robust accessories, for example no overloading of
carts due to elastic bearing of base plate, prevent unnecessary
breakdowns
- Silent operation
Learning objectives - Linear motion
- Velocity
- Acceleration
- Conservation of energy
Software included. Computer not provided. Scope of delivery |
USB charger for Cobra SMARTsense and Cobra4
|
07938-99
|
1
| |
Cobra SMARTsense Dual Photogate - Double light barrier 0 ... ∞ s (Bluetooth + USB)
|
12945-00
|
1
| |
Slotted weight, blank, 1 g
|
03916-00
|
20
| |
Slotted weight, silver bronze, 10 g
|
02205-03
|
4
| |
Slotted weight, silver bronze, 10 g
|
02205-03
|
4
| |
Slotted weight, silver bronze, 50 g
|
02206-03
|
2
| |
Slotted weight, silver bronze, 50 g
|
02206-03
|
2
| |
Tube with plug
|
11202-05
|
1
| |
Plasticine, 10 sticks
|
03935-03
|
1
| |
Silk thread, l = 200 m
|
02412-00
|
1
| |
Weight holder, 10 g
|
02204-01
|
1
| |
Needle with plug
|
11202-06
|
1
| |
Magnet w.plug f.starter system
|
11202-14
|
1
| |
Demonstration track, aluminium, 1.5 m
|
11305-00
|
1
| |
Cart, low friction sapphire-bearing
|
11306-00
|
1
| |
Holder for pulley
|
11305-11
|
1
| |
Pulley,movable,dia.40mm,w.hook
|
03970-00
|
1
| |
Starter system for demonstration track
|
11309-00
|
1
| |
End holder for demonstration track
|
11305-12
|
1
| |
Portable Balance, OHAUS CX2200
|
48921-00
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07363-01
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07363-04
|
1
| |
measureLAB, multi-user license
|
14580-61
|
1
| |
Holder for light barrier
|
11305-14
|
1
| |
Pulley for demonstration track
|
11305-10
|
1
|
|
