Technical data

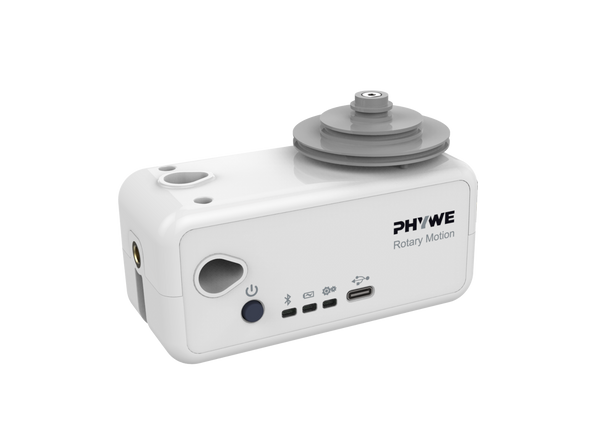

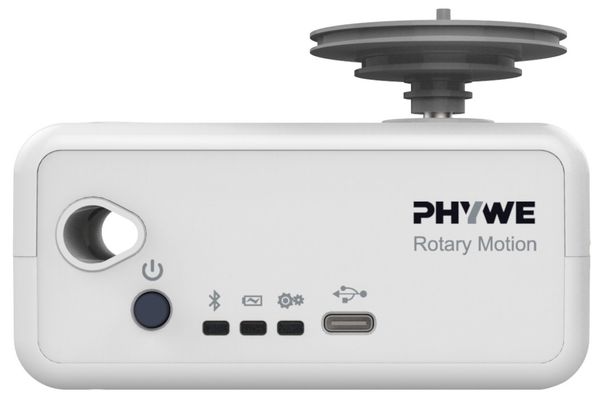

Cobra SMARTsense - Rotary Motion (Bluetooth + USB) - Sensor for measuring rotational movements 0 … ∞ ° (Bluetooth + USB)

Article no: 12918-01

Function and Applications

Use the Cobra SMARTsense Rotary Motion to measure angles, angular velocities and angular accelerations in the ranges 0 ... ∞ ° and ±10000 °/s and ±100000 °/s² and investigate the basic concepts of electricity with your pupils in a child's play way.

With sampling rates of up to 100 Hz and a resolution of 0.125 ° and 1.2 °/s and 12 °/s², the digital rotation sensor can be used flexibly in experiments ranging from angular acceleration to torsional oscillation.

Connect the Cobra SMARTsense Rotary Motion wirelessly via Bluetooth or wired via USB to the free and award-winning measureAPP measuring software – available for iOS, Android, Windows and Linux.

Switch on. Connect. Start measuring.

Benefits

  • Get started straight away with any Bluetooth-enabled device and the free measureAPP.
  • Intelligent and efficient power management for up to 50 teaching hours on one battery charge.
  • Up to 100 readings per second guarantee precision.
  • Measure angle, angular velocity and angular acceleration to study rotational motion in mechanics.
  • Practical accessory set 12918-02 is available separately.

Technical Specification

  • Measuring channels:
    • Rotation angle:
      • Measuring range: 0 ... ∞ °
      • Resolution: 0.125 °
    • Angular velocity:
      • Measuring range: ±10000 °/s
      • Resolution: 1.2 °/s
    • Angular acceleration:
      • Measuring range: ±100000 °/s²
      • Resolution: 12 °/s²
  • Data rate: 100 Hz
  • Bluetooth version: 5.3
  • Included: Thumb screw, stepped wheel and screw for fixing the stepped wheel.
  • Battery: Rechargeable lithium polymer battery with up to 50 hours operating time.
  • Included: USB-A to USB-C charging cable.
