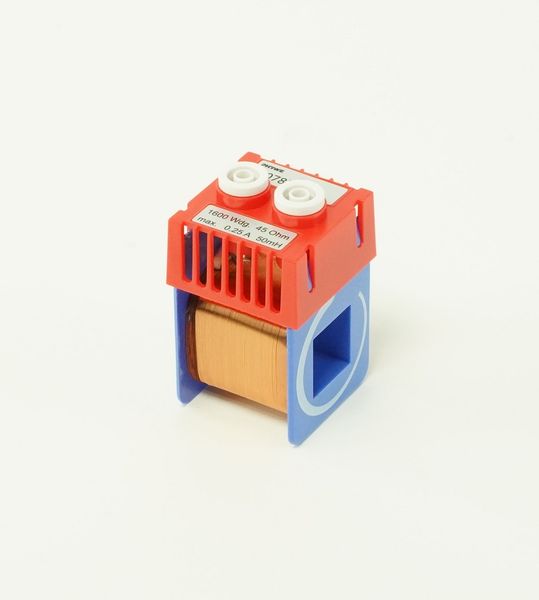

Coil, 1600 turns

Function and Applications

For student experiments with electromagnetism.

Equipment and Technical Data

• Shock proof plastic coil casing with two 4 mm sockets 19 mm apart.

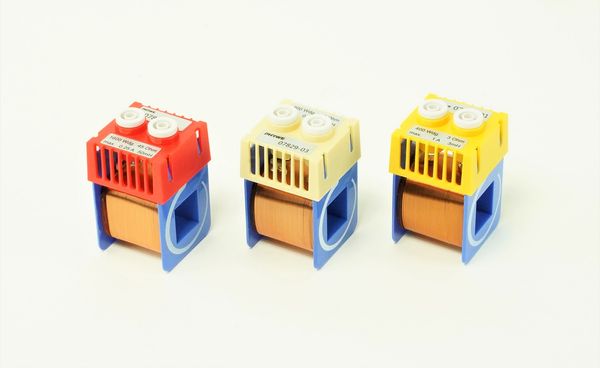

• On cover couloured according  to number of windings.
• For iron cores with diameter of  20 x 20 mm.
• Windings: 1600.
• Max. current: 0.25 A.
• Inductivity: 50 mH.
• Resistance: 45 Ohm.
