Technical data

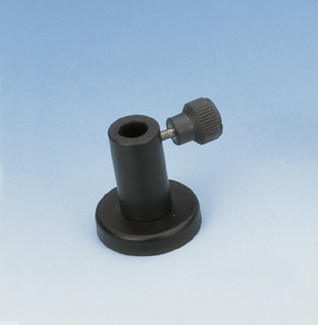

Magnetic foot for optical base plate

Article no: 08710-00
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

Function and Applications

Due to internal three-point guide way, stable and highly accurate work holding device for optical components with round stems (d = 10...13 mm) on the optical base plate.

Equipment and technical data

  • Magnetic base with sliding and attrition-free plastic coating for jolt-free positioning of the optical components on the base plate.
  • Base height: 55 mm.
