Technical data

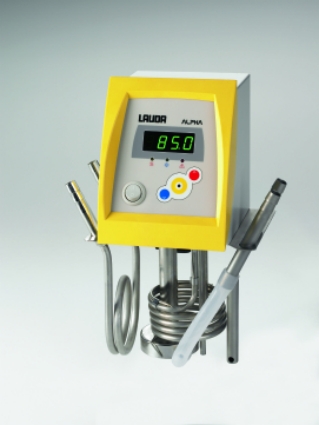

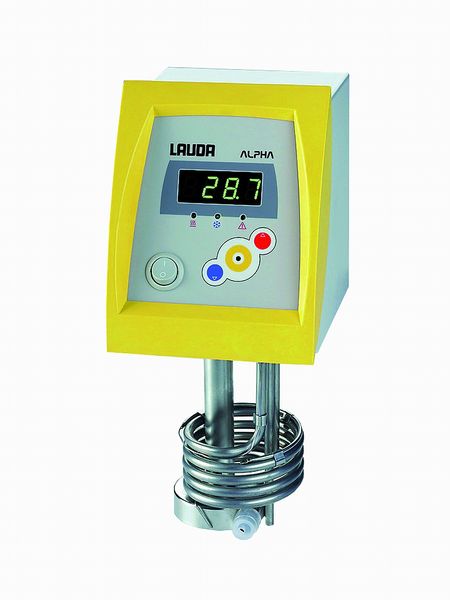

Immersion thermostat Alpha A, 115 V

Article no: 08493-91
Features- Immersion circulator with simple,reliable options for obtainingconsistent results- Compact unit can be combined with anyexisting baths up to 25 mm wallthickness- Wide temperature range to meetapplication needs- Digital settings for simple operation- Strong pump for high temperatureconformity- To be used with water as heat transferliquid- Screw clamp for bath walls up to 25 mm- Robust design using high gradestainless steel and temperatureresistant polymer- Wear-free; integrated overloadprotectionTechnical Data- Heater capacity: 1.15 kW- Temperature accuracy: ± 0.05 K- Working temperature range: 25 to 85°C- With additional cooling: -25 to 85°C- Power supply: 115 V; 60 Hz- Dimensions (WxDxH): 125 x 125 x 300 mm

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10 – 37079 Göttingen – Germany
www.phywe.com
