Technical data

XR 4.0 X-ray LiF crystal, mounted

Article no: 09056-05
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Function and Applications

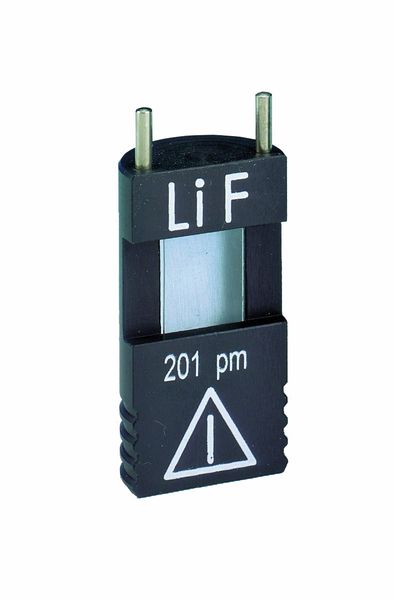

LiF-monocrystal mounted in holder.

In connection with x-ray unit for Laue-experiments and for the analysis of x-ray energies by the Bragg-method.

Equipment and Technical Data

  • Crystal surface polished.
  • Orientation (100)
  • Lattice spacing 201.4 pm
  • Thickness 0.5 mm
  • Useful surface (10 x 12) mm
