Technical data

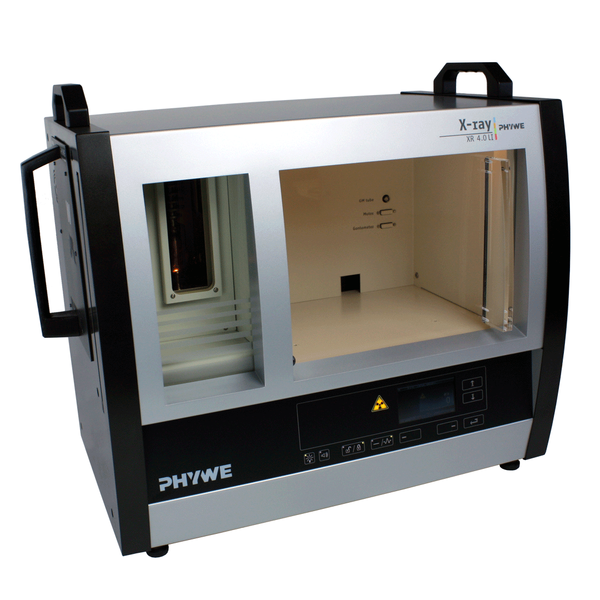

XR 4.0 LI unit , 35 kV

Article no: 09056-99

Function and Applications

X-ray unit with X-ray tube quick-change technology
School/full-protection device



Equipment and technical data

  • Microprocessor-controlled basic unit with two independent safety circuits for the door position and two independent monitoring circuits for the door locking system
  • Four different X-ray tubes (Fe, Cu, Mo, and W) can be plugged in and remain visible during operation
  • Determination of the X-ray intensity via an integrated Geiger-Müller counter tube connection with a variable counter tube voltage (0...600 V) and an integrated loudspeaker
  • TFT colour display (dimensions 4,3"(95x54 mm), 16 Bit, 56.536 colours, 480x272 Pixel) for the manual control of the unit
  • True-colour line-shaped interior LED lighting system
  • High voltage 0.0...35.0 kV in steps of 0,1 kV
  • Emission current 0.0...1.0 mA in steps of 0,01 mA
  • Housing (mm): 446(D) x 562(H) x 682(W)
  • Experiment chamber (mm): 440 (W) x 345(H) x 354 (D)
  • Connection: 110/240 V~, 50/60 Hz
  • Power consumption: 200 VA
  • Mass: 55 kg
  • PC control via USB 2.0

Required accessories

When the unit is used for the first time, at least one X-ray tube, e.g. the tungsten X-ray tube 09057-81, is required.

Scope of delivery

Adapter for mains cable 07349-00 1
XR 4.0 X-ray protection cover 09057-49 1
XR 4.0 Software measure X-ray 14414-61 1
TESS expert Physics Handbook X-ray Experiments for XR 4.0 expert unit 01200-02 1
Data cable USB, plug type A/B, 1.8 m 14608-00 1
