Technical data


Radioactive sources, set

Article no: 09047-40

Radioactive sources  set

Multi-Nuclide Test Source Set for Training Purposes
Total nominal activity: 296 kBq


  • Set of 4 different sources, each delivered in a radiation shielding container
  • Alpha Americium-241 (Am-241), Half-Life Time (HLT): 433 y, 74 kBq
  • Beta(+) Sodium-22 (Na-22), HLT: 2.6 y, 74 kBq
  • Beta(-) Strontium-90 (Sr-90), HLT: 28.5 y, 74 kBq
  • Gamma Cobalt-60 (Co-60), HLT: 5.3 y, 74 kBq

Consisting of 4 sources:

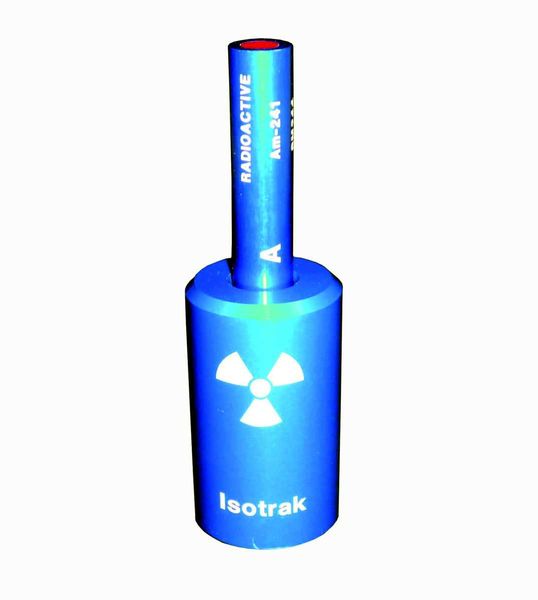

Source 1: Am-241

  • Am-241 Alpha demonstration source
  • Nominal activity: 74 kBq – Activity tolerance: +10% / -20%
  • Uncalibrated

Source 2: Co-60

  • Co-60 Gamma demonstration source
  • Nominal activity: 74 kBq – Activity tolerance: +0% / -20%
  • Uncalibrated

Source 3: Sr-90

  • Sr-90 Beta demonstration source
  • Nominal activity: 74 kBq – Activity tolerance: +0% / -40%
  • Uncalibrated

Source 4: Na-22

  • Na-22 Gamma demonstration source
  • Nominal activity: 74 kBq – Activity tolerance: +10% / -20%
  • Uncalibrated

In a shielding container
ISO classifications: ISO/14/C23312



Please note: To comply with EU regulation 1272/2008 CLP, PHYWE does not sell any chemicals to the general public. We only accept orders from resellers, professional users and research, study and educational institutions.



Please note that the sale and transportation of radioactive products may not be possible in certain countries.
