Technical data

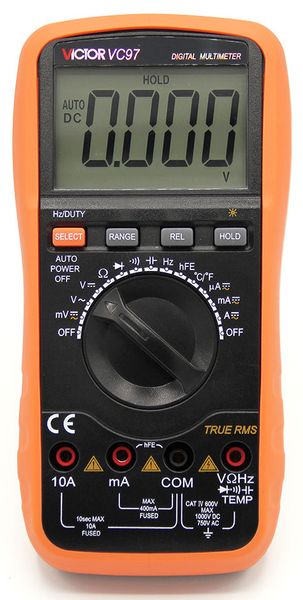

Digital multimeter, 750V AC/DC, 10A AC/DC, 40MΩ, 100mF, 30 MHz, -20...1000°C, Auto range

Article no: 07123-12

Function and Applications

Digital multimeter with auto-range function for the measurement of direct and alternate voltage, direct and alternate current, resistance, capacitance, frequency  and temperature.

Equipment and Technical Data

  • 3 ¾ digit LCD display, 28 mm, with backlight
  • DC Voltage: 400mV / 4V / 40V / 400V / 1000V
  • AC Voltage: 400mV / 4V / 40V / 400V / 750V
  • DC Current: 400µA / 4mA / 40mA / 400mA / 10A
  • AC Current: 400µA / 4mA / 40mA / 400mA / 10A
  • Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
  • Capacitance: 10nF / 100nF / 1µF / 10µF / 100µF / 1mF /10 mF / 100 mF
  • Frequency: 100 Hz / 1kHz / 10kHz / 100kHz / 1MHz / 30MHz
  • Temperature: -20...1000℃
  • Input impedance: 10MΩ, sampling rate: 3 times/s, max. Display: 1999, LCD size: 65×45mm
  • Diode test, continuity buzzer, data hold, low battery indication, auto power off, function protection, analog bar graph, shock proof protection
  • Accessories included: 9V battery, test leads, temperature probe, instruction manual
  • Safety: 1000V CAT III, 600V CAT IV
  • Dimensions: 189 x 97 x 35 mm
  • Weight: 400 g



Recommended accessories

Temperature sensor: Universal -50 ... +300 °C Type-K EAK-TF-55
