Technical data

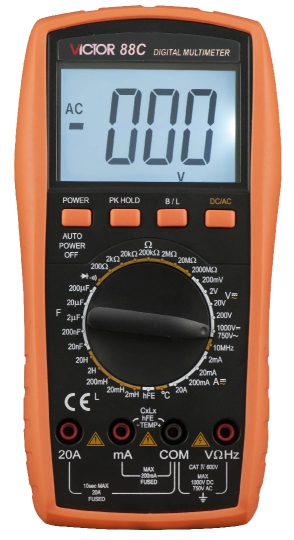

Digitalmultimeter 88C+, 750V AC/DC, 20A AC/DC, 2000MΩ, 200µF, 10 MHz, 20H, -20...1000°C

Article no: 07029-12

Function and Applications

Digital multimeter for the measurement of direct and alternate voltage, direct and alternate current, resistance, capacitance, frequency, inductance and temperature.

Equipment and Technical Data

  • 3 ½-digit LCD display, 28 mm, with backlight
  • DC Voltage: 200mV / 2V / 20V / 200V / 1000V
  • AC Voltage: 200mV / 2V / 20V / 200V / 750V
  • DC Current: 2mA / 20mA / 200mA / 20A
  • AC Current 2mA / 20mA / 200mA / 20A
  • Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 200MΩ / 2000MΩ
  • Capacitance: 20nF / 200nF / 2uF / 20uF / 200uF
  • Frequency: 2kHz /20kHz / 200kHz / 2000kHz/10MHz
  • Inductance: 2mH / 20mH / 200mH / 2H / 20H
  • Temperature: -20...1000℃
  • Input impedance: 10MΩ, sampling rate: 3 times/s, max. Display: 1999, LCD size: 65×45mm
  • Diode test,  continuity buzzer, data hold, auto power off, function protection, restorable fuse protection, shock proof protection
  • Accessories included: 9V battery, test leads, temperature probe, instruction manual
  • Dimensions: 189 x 97 x 35 mm
  • Weight: 400 g







Recommended accessories

Temperature sensor: Universal -50 ... +300 °C Type-K EAK-TF-55
