Technical data

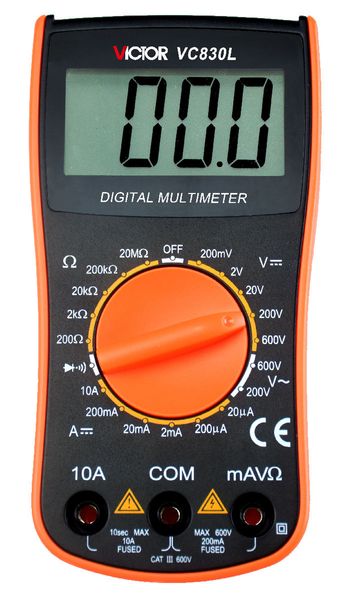

Digital multimeter, 600V AC/DC, 10A DC, 20MΩ

Article no: 07124-12

Function and Applications

Digital multimeter for the measurement of direct and alternate voltage, direct current, resistance, capacitance and frequency.

Benefits

  • Very good price/performance ratio.

  • Ideal for situations in which low currents in the µA range are to be measured with high resolution.

Equipment and Technical Data

  • 3 ½ digit LCD display (57 x 33 mm)
  • Direct voltage: 200 mV / 2V / 20V / 200V / 600V
  • Alternate voltage: 200V / 600V
  • Direct current: 20µA / 200 µA / 2mA / 20mA / 200mA /10A
  • Resistance: 200Ω / 2kΩ /20kΩ / 200kΩ / 20MΩ
  • Manual range, diode test, continuity buzzer, low battery indication, shock-proof protection
  • Accessories included: test leads, 9 V battery and instruction manual
  • Safety: CAT III 600 V
  • Dimensions: 138 x 72 x 35 mm
  • Weight: 150 g
