Storing the electrical energy of a solar cell with a capacitor with ADM3
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

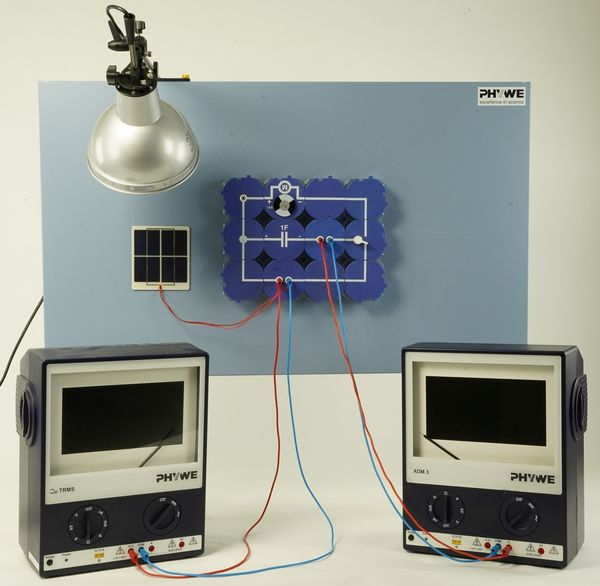

Principle Electrical energy can be stored with the help of capacitors. In
this experiment, we first show how a system consisting of a solar
cell and motor changes when a capacitor is installed. In a second
part of the experiment, it is then measured how different charging
times affect the running time of the motor. Benefits - Part of a system solution - easily expandable for further
experiments
- Simple teaching by using the demo board physics
- Clear test execution by using ADM3 multimeters
Scope of delivery |
Connector, straight, module DB
|
09401-01
|
2
| |
Connector, angled, module DB
|
09401-02
|
4
| |
Connector, T-shaped, module DB
|
09401-03
|
2
| |
Connector interrupted, module DB
|
09401-04
|
2
| |
Junction, module DB
|
09401-10
|
2
| |
Switch, change-over, module DB
|
09402-02
|
1
| |
Motor with indicating disc, 5 V, module DB
|
09469-00
|
1
| |
Solar battery, with cable, connectorsand magnet pads
|
06752-23
|
1
| |
Clamp on holder
|
02164-00
|
1
| |
Capacitor (gold cap), 1F, DB
|
09450-10
|
1
| |
Magnetic board with stand
|
02150-00
|
1
| |
Stand rods, stainless steel, various sizes
|
02033-00
|
1
| |
Ceramic lamp socket E27, with reflector, switch and security plug
|
06751-01
|
1
| |
Filament lamp, 220V/120W, with reflector
|
06759-93
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07360-01
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07360-04
|
1
| |
Connecting cable, 32 A, yellow, various lengths
|
07360-02
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07361-04
|
1
| |
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature
|
13840-00
|
2
| |
G-clamp
|
02014-01
|
2
|
|
