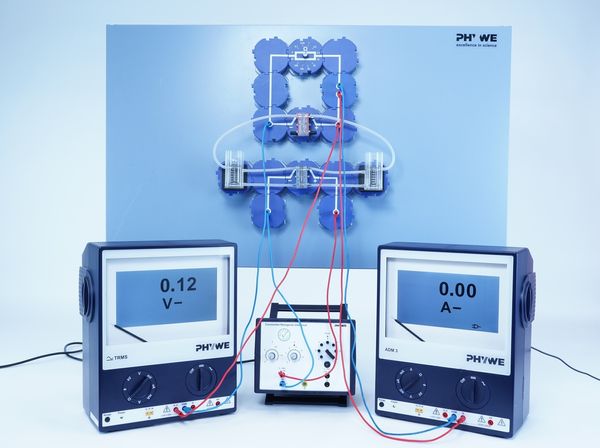

Current-voltage characteristic and power of a PEM fuel cell with ADM3
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
Principle In a PEM fuel cell, hydrogen and oxygen react to form water and
electrical energy is generated. The electrical power depends on the
size of the load resistance. This fuel cell can be supplied with
oxygen as well as with air. The characteristic curves of both
operating modes are compared. Benefits - Part of a system solution - easily expandable for further
experiments
- Simple teaching by using the demo board physics
- Clear test execution by using ADM3 multimeters
Scope of delivery |
Connector, angled, module DB
|
09401-02
|
4
| |
Connector, straight, module DB
|
09401-01
|
1
| |
Connector interrupted, module DB
|
09401-04
|
1
| |
Junction, module DB
|
09401-10
|
2
| |
Connector, angled with socket, module DB
|
09401-12
|
2
| |
Resistance decade, module DB
|
09420-00
|
1
| |
Double PEM electrolyser, DB
|
09488-00
|
1
| |
Gas storage tank (30 cm3) H2/O2
|
06723-01
|
2
| |
Building Block with magnetic pad, DB
|
09490-00
|
2
| |
Metal angle for building block with magnetic pad
|
09491-00
|
2
| |
Magnetic board with stand
|
02150-00
|
1
| |
PHYWE Power supply, universal, analog display DC: 18 V, 5 A / AC: 15 V, 5 A
|
13503-93
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07360-01
|
1
| |
Connecting cable, 32 A, yellow, various lengths
|
07360-02
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07361-04
|
1
| |
Connecting cable, 32 A, red, various lengths
|
07362-01
|
1
| |
Connecting cable, 32 A, blue, various lengths
|
07362-04
|
1
| |
Double PEM fuel cell for hydrogen/ oxygen operation and hydrogen/ air operation, DB
|
09486-00
|
1
| |
PHYWE Demo Multimeter ADM 3: current, voltage, resistance, temperature
|
13840-00
|
2
| |
G-clamp
|
02014-01
|
2
| |
Pinchcock, width 10 mm
|
43631-10
|
2
| |
Silicone tubing, various diameters
|
39292-00
|
2
|
|
