Technical data

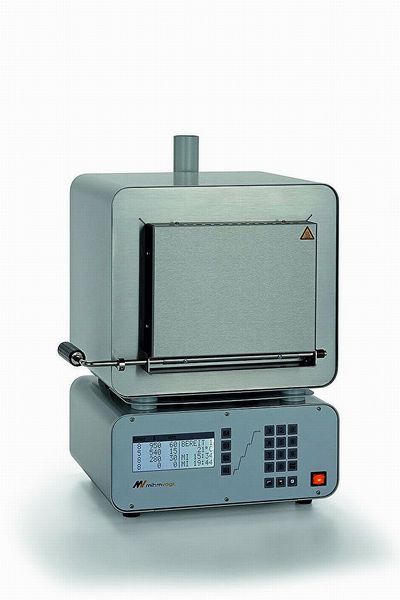

Laboratory Furnace, 1150°C

Article no: 49561-93
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications

Laboratory furnace for annealing, baking, melting. For ceramic, metal and cement processing etc. up to 1150 °C.

Benefits

  • Easy to program laboratory furnace with up to 30 programs, also for cold casting programs with a setback stage. Short texts can be stored as well.
  • All data of the four stages of a program are clearly shown in the display.
  • Individually adjustable heating rates between 1 - 30 °C/min. -Pouring time function with automatic start time calculation.
  • The shut-off temperatures for directly connected catalyst/steam exhaust or an exhaust hood can be programmed.



Equipment and technical data

  • External dimensions (W x H x D): 400 x 480 x 400 mm Chamber space (W x H x D): 150 x 100 x 170 mm
  • Space for: 4 casting muffles size 6
  • Temperature max.: 1,150 °C
  • Power: 1.6 kW
  • Weight: 31 kg
