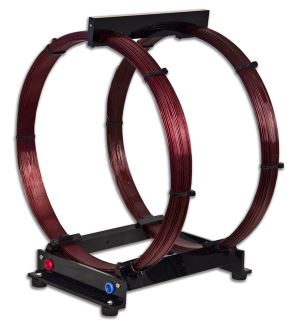

Helmholtz coils, one pair

Function and Application

The Helmholtz coil pair generates a large-volume homogeneous magnetic field between the coils.
It is used, among other applications, to investigate the deflection of electrons in a fine beam tube, to measure magnetic fields, or to clearly demonstrate electromagnetic effects.

Benefits

• Easy assembly and precise alignment through standardized mounts
• Robust and durable design for repeated use
• Compatible with fine beam tubes and versatile for use in other experimental setups

Technical Specification

• Two identical coils, each mounted on a base
• 4 mm safety sockets
• Removable cross connectors
• Coil diameter: 300 mm
• Number of turns per coil: 124
• Maximum continuous current: 5 A
• Maximum magnetic flux density (5 A): 3.7 mT
