Technical data

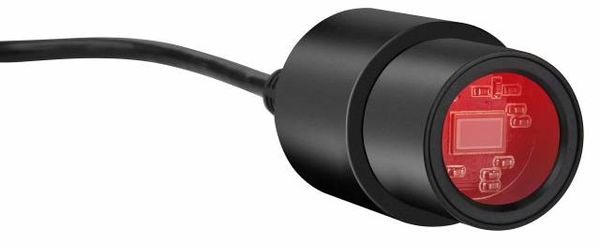

Full HD Eyepiece camera for microscopes

Article no: 88039-00
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications

Full HD USB eyepiece camera for microscopes and telescopes. Simply remove the eyepiece from the microscope head and insert the eyepiece camera instead.

Equipment and Technical Data

  • Metal housing

  • CMOS sensor, resolution 1920 x 1080px
  • Incl. multilingual software for Windows 7, 8 and 10
  • Adapter for all common microscopes and telescopes
  • 30mm and 30.5mm microscope adapter
  • 31.7mm (1.25") telescope adapter with filter thread for 1.25" filters

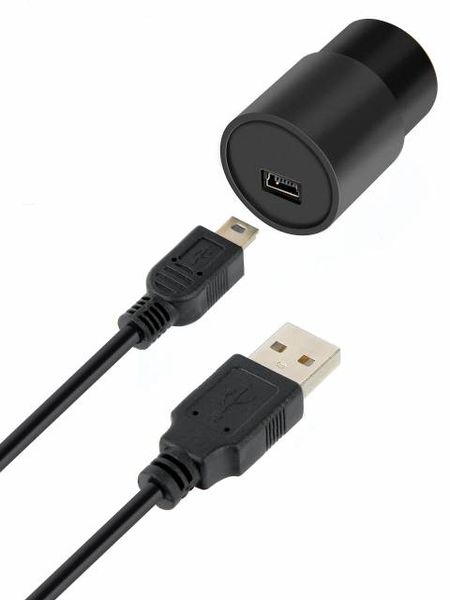

  • Mini USB 2.0 socket and mini USB cable
  • On the microscope: for brightfield and reflected light images
  • On the telescope: for moon and planetary images
