Technical data

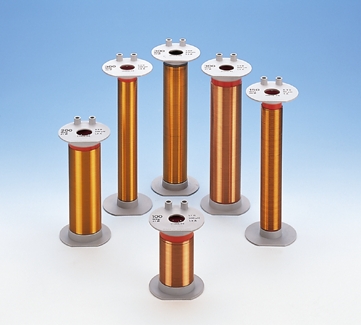

Induction coil,300 turns,dia.40mm

Article no: 11006-01

Function and Applications
To investigate electromagnetic induction together with field coil (11001-00) and the constitution of magnetic fields within long coils.

Equipment and technical data

  • Single layer winding on a hollow plastic cylinder with standing-flanges
  • Fit into field coil with 75 cm (11001-00)
  • Diameter of the Standing-flanges: 66 mm
  • Turns: 300
  • Coil length: 160 mm
  • Coil diameter: 40 mm
  • Resistance: 3.5 Ohm
  • Inductance: 0.8 mH
  • Current: 1.2 A
