Technical data

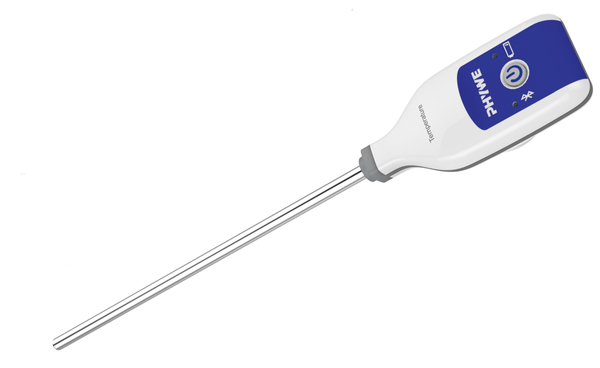

Cobra SMARTsense Temperature - Sensor for measuring temperature -40 ... 125 °C (Bluetooth)

Article no: 12903-00

Function and Applications
Use the Cobra SMARTsense Temperature to measure temperatures of −40 ... 125 °C and investigate the basic concepts of thermodynamics with your pupils in a child's play way.

With sampling rates of up to 10 Hz and a resolution of 0.01 °C, the digital temperature sensor can be used flexibly in experiments ranging from glycolysis to enthalpy determination.

Connect the Cobra SMARTsense Temperature wirelessly via Bluetooth to the free and award-winning measureAPP – available for iOS, Android, Windows and Linux.

Switch on. Connect. Start measuring.

Benefits

  • Get started straight away with any Bluetooth-enabled device and the free measureAPP.
  • Intelligent and efficient power management for up to 50 teaching hours on one battery.
  • Up to 10 readings per second guarantee precision.

Technical Specification

  • Measuring channel:
    Temperature
    • Measuring range: −40 ...125 °C
    • Resolution: 0.01 °C
    • Sampling rate: up to 10 Hz (Bluetooth and USB)
  • Bluetooth version: 5.0
  • The sensor is waterproof to IP67. It requires a CR2032 button cell battery, which is not included.

Necessary accessories

measureAPP - the free measurement software for all devices and operating systems 14581-61
Button Cell CR2032, 3V (2 pieces) 07922-17

Recommended accessories

USB-Bluetooth Connector for Cobra SMARTsense 07936-00

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10 – 37079 Göttingen – Germany
www.phywe.com
