Technical data

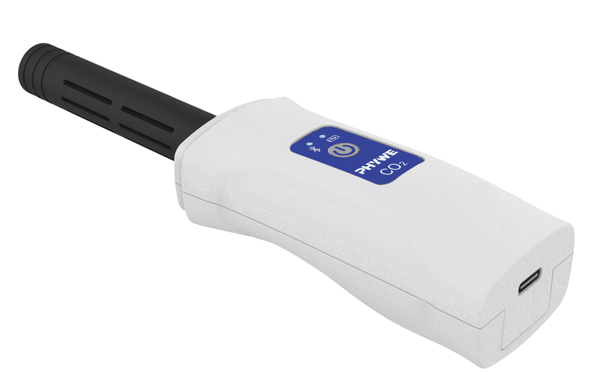

Cobra SMARTsense CO2 - CO2 sensor for carbon dioxide content in the air 0 ... 100000 ppm (Bluetooth + USB)

Article no: 12932-01

Function and Applications
Use the Cobra SMARTsense CO2 to measure the concentration of gaseous carbon dioxide in the range of 0–100000 ppm and investigate air quality or CO2 development with your pupils in a child's play way.

With sampling rates of up to 1 Hz and a resolution of 2 ppm, the digital CO2sensor can be used in experiments ranging from respiration to soil quality.

Connect the Cobra SMARTsense CO2 wirelessly via Bluetooth or wired via USB to the free and award-winning measureAPP measuring software – available for iOS, Android, Windows and Linux.

Switch on. Connect. Start measuring.

Benefits

  • Get started straight away with any Bluetooth-enabled device and the free measureAPP
  • Intelligent and efficient power management for up to 50 teaching hours on one battery charge.
  • Up to 1 reading per second guarantees precision.

Technical Specification

  • Measuring channel:
    CO2
    • Measuring range: 0–100000 ppm
    • Resolution: 2 ppm
    • Sampling rate: up to 1 Hz (Bluetooth and USB)
  • Bluetooth version: 5.0
  • Battery: Rechargeable lithium polymer battery with up to 50 hours operating time
  • Included: USB-A to USB-C charging cable

Necessary accessories

measureAPP - the free measurement software for all devices and operating systems 14581-61
Plug with hole for use with Cobra SMARTsense CO2 12932-10

Recommended accessories

Erlenmeyer flasks, Boro, narrow neck, various sizes 46142-00
Erlenmeyer flasks, Duran®, narrow neck, various sizes 36124-00
USB quick charger with 8 USB ports 07934-99
USB-Bluetooth Connector for Cobra SMARTsense 07936-00
