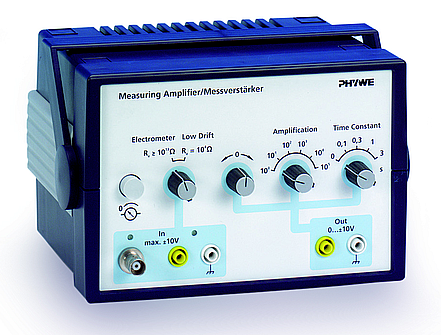

PHYWE Universal measuring amplifier

Function and Applications

Universal measuring amplifier for amplification of AC and DC voltages. Suitable for lab courses.

Equipment and Technical Data

• Input impedance of electrometer: > 10 (13) Ohm
• Low drift: 10 kOhm
• Input voltage: -10 to + 10 V
• Output voltage: -10 to + 10 V
• Six frequency ranges: V=1: 0...22 kHz, V=10: 0... 22 kHz, V=10^2: 0... 10 kHz, V=10^3: 0... 6 kHz, V=10^4: 0...2.5 kHz, V=10^5: 0... 2 kHz
• Mains voltage: 230 V AC
• Dimensions: 194 x 140 x 126 mm
