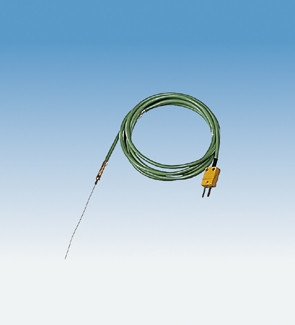

Thermocouple NiCr-Ni, -40..1300°C

Function and Applications

Thermocouple with standard type-K 2-pin flat plug which makes no contribution to the thermovoltage.

Benefits

• Suitable for use with a digital thermometer, hand-held temperature meter, or any interfaces using type-K connectors (e.g. Cobra 4, Cobra4 SMARTsense)

Equipment and Technical Data

• Magnesium oxide powder insulation
• Stainless steel sheath
• Temperature range: -40°C to -1300°C
• Response time: <1 s
• Cable: 2 m
• Sensor length: 100 mm
• Diameter of the sensor at the tip: 0.5 mm
