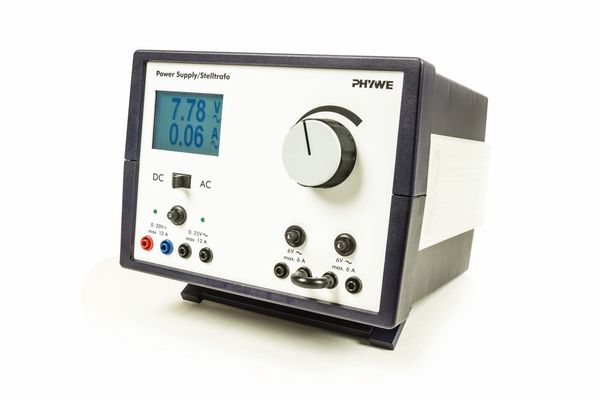

PHYWE Variable transformer with digital display DC: 0...20 V, 12 A / AC: 0...25 V, 12 A

Function and Applications

Standard heavy-duty power supply unit for low voltage. Supplies continously adjustable DC and AC voltages & 2 frequently requiredfixed voltages.

Equipment and Technical Data

• AC output: ca. 0.2...25 V/12 A
• DC output: ca.0.2...20 V/12 A
• Max. current (short-term): 13 A
• Additional fixed voltages: 6 V AC/6 A12 V AC/6 A
• Max. current (short-term): 10 A
• Max. power: 375 VA
• Fuses: one 13 A and two 10 A
• Displays: 2 digital meters for current and voltage
• Supply voltage: 230 V AC
• Dimensions (mm): 230 x 236 x 234
