Technical data

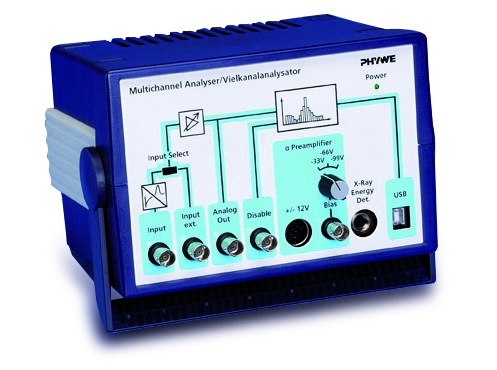

PHYWE Multichannel Analyser (MCA)

Article no: 13727-99

Function and Applications

The multichannel analyser is for analysing voltage pulses which are proportional to energy and for determining pulse rates and intensities in conjunction with an X-ray detector, alpha detector or gamma detector. The analogue pulses from the detector are shaped by the analyser, digitised and summed per channel according to pulse height. This results in a frequency distribution of detected pulses dependent on the energy of the radiation.

Benefits

  • Offset function for enhancing  energy resolution

  • For spectroscopy and x-ray fluorescence analysis

Equipment and Technical Data

  • Analog output for observing heights of the pulse spectrum on an oscilloscope
  • A USB output for connecting to a computer
  • Integrated power supply for alpha detector pre-amp (09100-00)
  • Integrated power supply for X-ray energy detector
  • Includes 1.5-m mains lead, USB cable type A/B
  • Multi-channel analyser software (required)
  • Resolution (per spectrum): up to 4096 channels (12 bit)
  • Memory: unlimited
  • Lag time: 60 µs
  • Coincidence window: 1 µs
  • Analogue input: negative pulse impedance: 3.3 kilohms, 150 pF
  • Amplification: three stages, 6, 12 and 24 digitally adjustable
  • Pulse height: max. 4 V
  • Analogue output: positive pulse 0 to 4 V-
  • Pulse length: 15 µs offset approx.
  • 12-bit digital resolution
  • Maximum offset: 4 V (disable input/coincidence input)
  • Logic input (TTL) for coincidence  measurements at voltage outputs
  • Diode socket: ± 12 V / max. 30 mA
  • BNC socket (bias voltage): -33, -66, -99 V
  • Plastic case with carrying handle
  • Mains voltage: 115/230 V~
  • Mains frequency: 50/60 Hz
  • Dimensions H × W × D (mm): 90 x 140 x 130

  • Weight: 1550 g

  • Required accessory: Multi-channel analyser software, item no. 14452-61





Scope of delivery

Data cable USB, plug type A/B, 1.8 m 14608-00 1

Necessary accessories

measure Software multi channel analyser 14452-61
