Technical data


DEMO advanced Physics Electromagnetism 1, digital

Article no: 25573-88D
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications


Equipment set for performing at least 7 demonstration experiments on the topics:

Electromagnetic ...

  • Engines (3 experiments)
  • Induction (1 experiments)
  • Generators (3 experiments)



In 6 experiments, you can use the Cobra SMARTsense Voltage, Current and High Current sensors in combination with all mobile operating systems (iOS, Android, Windows) on any end device (smartphone, tablet, desktop PC). In conjunction with DEMO advanced Physics Electromagnetism 2 (25574-88), five more experiments can be performed digitally.



Benefits



  • Didactically valuable build-up motor set
  • Minimal preparation time
  • 3 different rotors
  • Shock-proof plastic housing with marked winding direction and safety sockets
  • The ideal combination of classic experiments (practical competence) and digital data acquisition (media competence)
  • Individual teaching structure possible: you can decide to choose the measuring intrument you want (classic or digital)
  • Future-proof: Prepare the transition to the digital school today
  • Perfectly matched to digital science lessons with smartphones, tablets and desktop PCs
  • Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes



Equipment and Technical Data



  • Power supplies and measuring devices are required to carry out the listed experiments

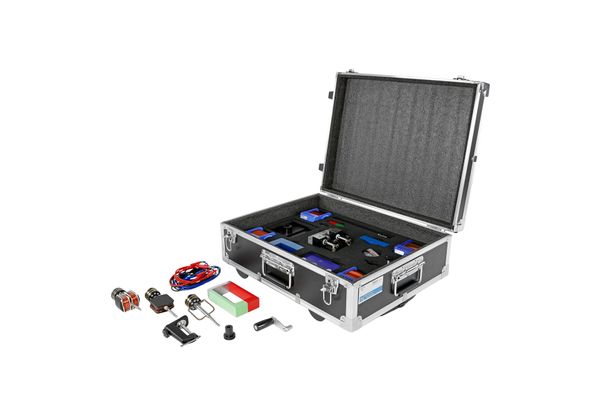

  • The equipment is stored in a robust aluminum case with a removable lid
  • Foam insert: quick control for completeness and safe transport
  • Cobra SMARTsense Voltage: Measuring range +/- 30 V, resolution 0.02 V, sampling rate 1000 Hz (10000 Hz via USB)
  • Cobra SMARTsense Current: Measuring range +/- 1 A, resolution 0.5 mA, sampling rate 1000 Hz (10000 Hz via USB)

  • Cobra SMARTsense High Current: Measuring range +/- 10 A, resolution 10 mA, sampling rate 1000 Hz (10000 Hz via USB)
