Technical data

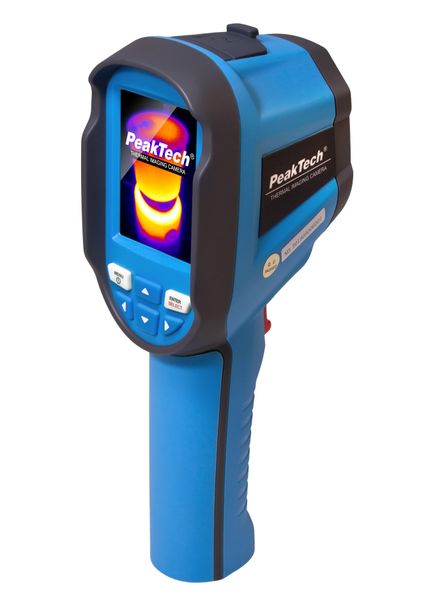

IR-Thermal Imaging Camera 220 x 160 px., -20°C ... 400°C with photo recording, USB and analysis software

Article no: EAK-P-5610-B
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> Unknown

Function and Applications

Versatile thermal imaging camera with a thermal resolution of 220x160 thermal pixels, which makes temperature differences easily recognisable for any user.

This unit also has five different colour palettes of thermal imaging, as well as five overlay modes for video or photo to thermal imaging, so that the user can easily locate the temperature differences in the real image or one of the image overlays. Analysis software is stored in the unit's internal memory and can thus be installed on connected PCs at any time.



Equipment and Technical Data

  • Modern IR thermal imaging camera technology

  • 2.8" LCD colour display and graphical menu navigation
  • Thermal image resolution of 220 x 160 pixels
  • Image diagonal: 7 cm (2.8")
  • Measuring range: -20°C ... 400°C
  • Photo and video recording of thermal images
  • Images and videos with measured value display
  • Five levels of photo to thermal image overlay
  • Five colour palettes (Spectra, Iron, Cool, White, Black)
  • Crosshair, cold- and hot-spot display
  • USB interface for data transfer
  • Included analysis software with thermographic functions
  • Also suitable for longer distances (e.g. building thermography)
  • IP 54 dust- and splash-proof

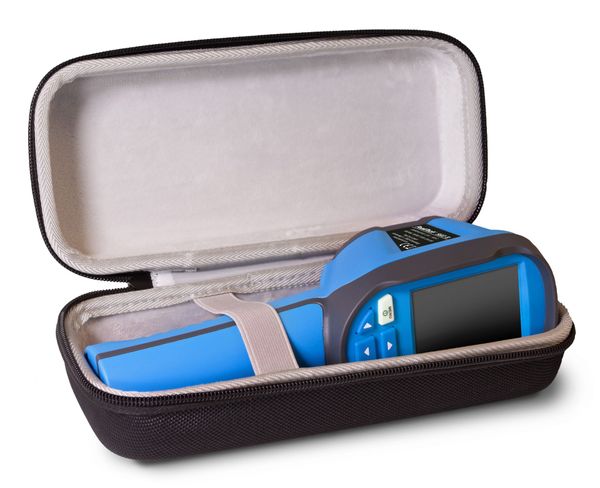

  • Includes: carrying case, USB cable, charger, software and operating instructions
