Technical data

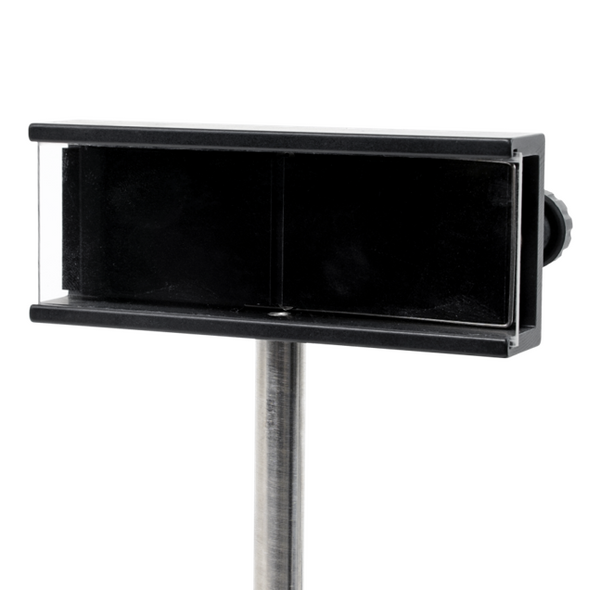

Fresnel mirror

Article no: 08562-00
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> Unknown

Function
For demonstration and quantitative investigation of two coherent light beams in undiffracted light.

Equipment and technical data

  • Fixed mirror: 31 x 48 mm

  • Mirror material: reflective black glass

  • Movable mirror: 31 x 48 mm

  • Adjustment: fine pitch screw

  • Adjustment range: -4 to +6°.

  • Frame: anodized aluminum

  • Holder: stem Ø 10 mm - L 130 mm
